End Mills
Solid carbide end mills - Long
- Diameter range
- Ø 3–25 mm
- Sizes
- 30 sizes
- Flutes (Z)
- 4
- Coating
- nACo Multilayer
- Helix angle
- 30°
- Standard
- DIN 6528 (flat)
Images

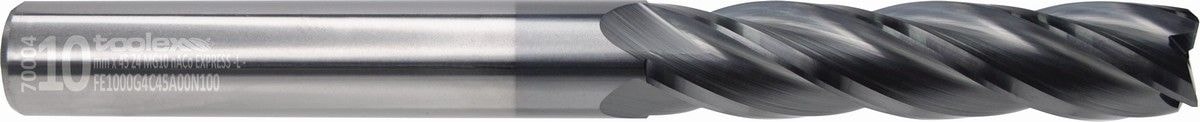

Product images
Click to enlarge
Code key
Specifications
The icons describe the family's reference size in the order of the Toolex article code.
Type
End mill
Grade
MG-10
Reference diameter
Ø 10 mm
Standard
DIN 6528 (flat)
Flutes
4 flutes
Shank type
DIN 6535 HA
Flute length
45 mm
Helix angle
30°
Edge form
Sharp corner
Coating
nACo Multilayer
Overall length
100 mm
Sizes
Size table

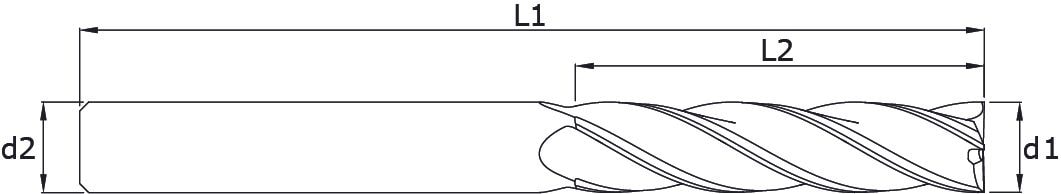

All dimensions in mm; column headings match the symbols on the technical drawing. Add any row to your quote basket by its article code.
Article code for quote
30 sizes
Download Excel| Quote | |||||||
|---|---|---|---|---|---|---|---|
| 3 | 16 | 65 | 3 | 4 | FE0300G4C16A00B065 | FE0300G4C16A00N065 | |
| 4 | 18 | 65 | 4 | 4 | FE0400G4C18A00B065 | FE0400G4C18A00N065 | |
| 5 | 20 | 65 | 5 | 4 | FE0500G4C20A00B065 | FE0500G4C20A00N065 | |
| 6 | 24 | 68 | 6 | 4 | FE0600G4C24A00B068 | FE0600G4C24A00N068 | |
| 8 | 38 | 88 | 8 | 4 | FE0800G4C38A00B088 | FE0800G4C38A00N088 | |
| 3 | 20 | 100 | 3 | 4 | FE0300G4C20A00B100 | FE0300G4C20A00N100 | |
| 4 | 26 | 100 | 4 | 4 | FE0400G4C26A00B100 | FE0400G4C26A00N100 | |
| 5 | 26 | 100 | 5 | 4 | FE0500G4C26A00B100 | FE0500G4C26A00N100 | |
| 6 | 40 | 100 | 6 | 4 | FE0600G4C40A00B100 | FE0600G4C40A00N100 | |
| 8 | 45 | 100 | 8 | 4 | FE0800G4C45A00B100 | FE0800G4C45A00N100 | |
| 10 | 45 | 100 | 10 | 4 | FE1000G4C45A00B100 | FE1000G4C45A00N100 | |
| 12 | 45 | 100 | 12 | 4 | FE1200G4C45A00B100 | FE1200G4C45A00N100 | |
| 14 | 45 | 100 | 14 | 4 | FE1400G4C45A00B100 | FE1400G4C45A00N100 | |
| 16 | 45 | 100 | 16 | 4 | FE1600G4C45A00B100 | FE1600G4C45A00N100 | |
| 18 | 45 | 100 | 18 | 4 | FE1800G4C45A00B100 | FE1800G4C45A00N100 | |
| 20 | 45 | 104 | 20 | 4 | FE2000G4C45A00B104 | FE2000G4C45A00N104 | |
| 8 | 40 | 130 | 8 | 4 | FE0800G4C40A00B130 | FE0800G4C40A00N130 | |
| 10 | 50 | 130 | 10 | 4 | FE1000G4C50A00B130 | FE1000G4C50A00N130 | |
| 12 | 50 | 130 | 12 | 4 | FE1200G4C50A00B130 | FE1200G4C50A00N130 | |
| 14 | 50 | 130 | 14 | 4 | FE1400G4C50A00B130 | FE1400G4C50A00N130 | |
| 16 | 60 | 130 | 16 | 4 | FE1600G4C60A00B130 | FE1600G4C60A00N130 | |
| 18 | 60 | 130 | 18 | 4 | FE1800G4C60A00B130 | FE1800G4C60A00N130 | |
| 20 | 60 | 130 | 20 | 4 | FE2000G4C60A00B130 | FE2000G4C60A00N130 | |
| 10 | 65 | 165 | 10 | 4 | FE1000G4C65A00B165 | FE1000G4C65A00N165 | |
| 12 | 65 | 165 | 12 | 4 | FE1200G4C65A00B165 | FE1200G4C65A00N165 | |
| 14 | 65 | 165 | 14 | 4 | FE1400G4C65A00B165 | FE1400G4C65A00N165 | |
| 16 | 75 | 165 | 16 | 4 | FE1600G4C75A00B165 | FE1600G4C75A00N165 | |
| 18 | 75 | 165 | 18 | 4 | FE1800G4C75A00B165 | FE1800G4C75A00N165 | |
| 20 | 75 | 165 | 20 | 4 | FE2000G4C75A00B165 | FE2000G4C75A00N165 | |
| 25 | 75 | 165 | 25 | 4 | FE2500G4C75A00B165 | FE2500G4C75A00N165 |
