Code key

Specifications

The icons describe the family's reference size in the order of the Toolex article code.

Type
End mill
Grade
NG-12
Reference diameter
Ø 1 mm
Standard
DIN 6528 (flat)
Flutes
2 flutes

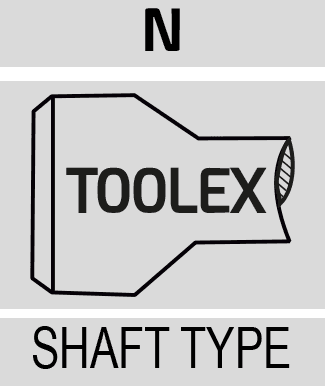

Shank type
Toolex (reduced)
Flute length
20 mm
Helix angle
30°
Edge form
Sharp corner
Coating
nACo Multilayer
Overall length
80 mm

Sizes

Size table

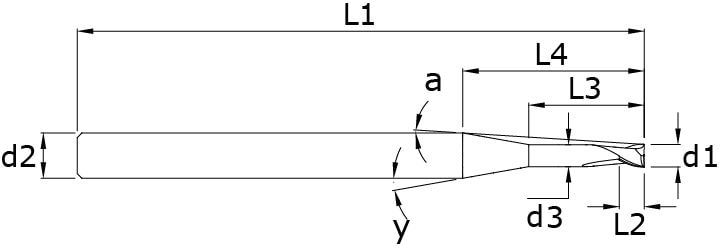

All dimensions in mm; column headings match the symbols on the technical drawing. Add any row to your quote basket by its article code.

55 sizes

Download Excel

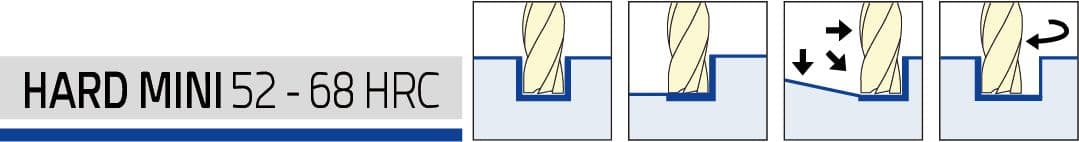

Solid carbide end mills - Mini Hard – dimensions and article codes

0.2	0.3	0.4	15.98	0.19	50	4	2	7,00°	6,78°	FH0020G2N50A00N004
0.2	0.3	0.8	16.38	0.19	50	4	2	7,00°	6,62°	FH0020G2N50A00N008
0.2	0.3	1.2	12.08	0.19	50	4	2	10,00°	8,94°	FH0020G2N50A00N012
0.2	0.3	2	12.88	0.19	50	4	2	10,00°	8,39°	FH0020G2N50A00N020
0.3	0.5	0.6	15.85	0.29	50	4	2	7,00°	6,66°	FH0030G2N50A00N006
0.3	0.5	1.2	11.85	0.29	50	4	2	10,00°	8,88°	FH0030G2N50A00N012
0.3	0.5	2.4	13.05	0.29	50	4	2	10,00°	8,70°	FH0030G2N50A00N024
0.3	0.5	3	13.65	0.29	50	4	2	10,00°	7,72°	FH0030G2N50A00N030
0.4	0.6	0.8	15.66	0.38	50	4	2	7,00°	6,55°	FH0040G2N50A00N008
0.4	0.6	1.6	12.01	0.38	50	4	2	10,00°	8,52°	FH0040G2N50A00N016
0.4	0.6	3.2	13.61	0.38	50	4	2	10,00°	7,53°	FH0040G2N50A00N032
0.4	0.6	4	14.41	0.38	50	4	2	10,00°	6,92°	FH0040G2N50A00N040
0.5	0.8	1	15.55	0.48	50	4	2	7,00°	6,42°	FH0050G2N50A00N010
0.5	0.8	2	12.18	0.48	50	4	2	10,00°	8,17°	FH0050G2N50A00N020
0.5	0.8	4	14.18	0.48	50	4	2	10,00°	7,03°	FH0050G2N50A00N040
0.5	0.8	6	16.18	0.48	50	4	2	10,00°	6,17°	FH0050G2N50A00N060
0.6	0.9	1.2	15.35	0.57	50	4	2	10,00°	6,32°	FH0060G2N50A00N012
0.6	0.9	2	11.95	0.57	50	4	2	10,00°	8,09°	FH0060G2N50A00N020
0.6	0.9	4	13.95	0.57	50	4	2	10,00°	6,94°	FH0060G2N50A00N040
0.6	0.9	8	17.95	0.57	50	4	2	10,00°	5,41°	FH0060G2N50A00N080
0.7	1.1	1.4	15.18	0.67	50	4	2	7,00°	6,20°	FH0070G2N50A00N014
0.7	1.1	2.5	12.21	0.67	50	4	2	10,00°	7,69°	FH0070G2N50A00N025
0.7	1.1	5	14.71	0.67	50	4	2	10,00°	6,40°	FH0070G2N50A00N050
0.7	1.1	8	17.71	0.67	50	4	2	10,00°	5,32°	FH0070G2N50A00N080
0.8	1.2	1.6	11.1	0.76	50	4	2	10,00°	8,20°	FH0080G2N50A00N016
0.8	1.2	3	12.5	0.76	50	4	2	10,00°	7,29°	FH0080G2N50A00N030
0.8	1.2	6	15.5	0.76	50	4	2	10,00°	5,89°	FH0080G2N50A00N060
0.8	1.2	10	19.5	0.76	50	4	2	10,00°	4,69°	FH0080G2N50A00N100
1	1.5	2	11.01	0.95	50	4	2	10,00°	7,75°	FH0100G2N50A00N020
1	1.5	4	13.01	0.95	50	4	2	10,00°	6,57°	FH0100G2N50A00N040
1	1.5	8	17.01	0.95	50	4	2	10,00°	5,03°	FH0100G2N50A00N080
1	1.5	12	21.01	0.95	50	4	2	10,00°	4,08°	FH0100G2N50A00N120
1	1.5	16	25.01	0.95	50	4	2	10,00°	3,43°	FH0100G2N50A00N160
1	1.5	20	29.01	0.95	50	4	2	10,00°	2,96°	FH0100G2N50A00N200
1.2	1.8	2	10.54	1.14	50	4	2	10,00°	7,56°	FH0120G2N50A00N020
1.2	1.8	4	12.54	1.14	50	4	2	10,00°	6,37°	FH0120G2N50A00N040
1.5	2.3	4	11.85	1.43	50	4	2	10,00°	6,02°	FH0150G2N50A00N040
1.5	2.3	8	15.85	1.43	50	4	2	10,00°	4,50°	FH0150G2N50A00N080
1.5	2.3	12	19.85	1.43	50	4	2	10,00°	3,60°	FH0150G2N50A00N120
1.5	2.3	20	27.85	1.43	50	4	2	10,00°	2,57°	FH0150G2N50A00N200
2	3	4	10.68	1.9	50	4	4	10,00°	5,35°	FH0200G4N50A00N040
2	3	8	14.68	1.9	50	4	4	10,00°	3,09°	FH0200G4N50A00N080
2	3	12	18.68	1.9	50	4	4	10,00°	3,06°	FH0200G4N50A00N120
2	3	16	22.68	1.9	50	4	4	10,00°	2,52°	FH0200G4N50A00N160
2	3	20	26.68	1.9	50	4	4	10,00°	2,14°	FH0200G4N50A00N200
2.5	3.8	5	10.51	2.38	50	4	4	10,00°	4,08°	FH0250G4N50A00N050
2.5	3.8	8	13.51	2.38	50	4	4	10,00°	3,17°	FH0250G4N50A00N080
2.5	3.8	12	17.51	2.38	50	4	4	10,00°	2,45°	FH0250G4N50A00N120
2.5	3.8	16	21.51	2.38	50	4	4	10,00°	1,99°	FH0250G4N50A00N160
2.5	3.8	20	25.51	2.38	50	4	4	10,00°	1,68°	FH0250G4N50A00N200
3	4.5	6	10.34	2.85	50	4	4	10,00°	2,76°	FH0300G4N50A00N060
3	4.5	8	12.34	2.85	50	4	4	10,00°	2,32°	FH0300G4N50A00N080
3	4.5	12	16.34	2.85	50	4	4	10,00°	1,75°	FH0300G4N50A00N120
3	4.5	16	20.34	2.85	50	4	4	10,00°	1,40°	FH0300G4N50A00N160
3	4.5	20	24.34	2.85	50	4	4	10,00°	1,17°	FH0300G4N50A00N200
