Fräser

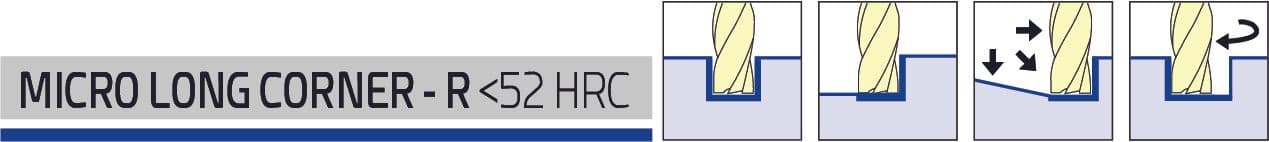

VHM - Schaftfräser mit Eckenradius - Micro Lang
- Durchmesserbereich
- Ø 0,5–2 mm
- Abmessungen
- 33 Abmessungen
- Schneidenzahl (Z)
- 2 / 4
- Beschichtung
- nACo Multilayer
- Drallwinkel
- 30°
- Norm
- Toolex Eckenradius
Bilder
Produktbilder
Zum Vergrößern klicken
Code-Schlüssel
Kenndaten
Die Symbole beschreiben die Referenzabmessung der Produktfamilie in der Reihenfolge der Toolex-Artikelnummer.
Typ
Fräser
Sorte
MG-10
Referenzdurchmesser
Ø 1 mm
Norm
Toolex Eckenradius
Schneidenzahl
2 Schneiden
Schaftform
DIN 6535 HEK
Schneidenlänge
20 mm
Drallwinkel
30°
Eckenform
Eckenradius (20)
Beschichtung
nACo Multilayer
Gesamtlänge
65 mm
Abmessungen
Maßtabelle
Alle Maße in mm; die Spaltenköpfe entsprechen den Symbolen der technischen Zeichnung. Jede Zeile lässt sich mit ihrer Artikelnummer in den Angebotskorb legen.
33 Abmessungen
Excel herunterladen| Angebot | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.5 | 0.8 | 1 | 11.4 | 0.48 | 65 | 3 | 2 | 7,0° | 6,17° | 0.1 | FE0050K2K65A10N010 | |
| 0.5 | 0.8 | 2 | 9.3 | 0.48 | 65 | 3 | 2 | 10,0° | 7,63° | 0.1 | FE0050K2K65A10N020 | |
| 0.5 | 0.8 | 4 | 11.3 | 0.48 | 65 | 3 | 2 | 10,0° | 6,30° | 0.1 | FE0050K2K65A10N040 | |
| 0.5 | 0.8 | 6 | 13.3 | 0.48 | 65 | 3 | 2 | 10,0° | 5,36° | 0.1 | FE0050K2K65A10N060 | |
| 0.6 | 0.9 | 1.2 | 11.3 | 0.57 | 65 | 3 | 2 | 7,0° | 6,10° | 0.1 | FE0060K2K65A10N012 | |
| 0.6 | 0.9 | 2 | 9.1 | 0.57 | 65 | 3 | 2 | 10,0° | 7,52° | 0.1 | FE0060K2K65A10N020 | |
| 0.6 | 0.9 | 4 | 11.1 | 0.57 | 65 | 3 | 2 | 10,0° | 6,18° | 0.1 | FE0060K2K65A10N040 | |
| 0.6 | 0.9 | 8 | 15.1 | 0.57 | 65 | 3 | 2 | 10,0° | 4,55° | 0.1 | FE0060K2K65A10N080 | |
| 0.7 | 1.1 | 1.4 | 11.1 | 0.67 | 65 | 3 | 2 | 7,0° | 5,90° | 0.1 | FE0070K2K65A10N014 | |
| 0.7 | 1.1 | 2.5 | 9.4 | 0.67 | 65 | 3 | 2 | 10,0° | 6,99° | 0.1 | FE0070K2K65A10N025 | |
| 0.7 | 1.1 | 5 | 11.9 | 0.67 | 65 | 3 | 2 | 10,0° | 5,54° | 0.1 | FE0070K2K65A10N050 | |
| 0.7 | 1.1 | 8 | 14.9 | 0.67 | 65 | 3 | 2 | 10,0° | 4,43° | 0.1 | FE0070K2K65A10N080 | |
| 0.8 | 1.2 | 2 | 8.6 | 0.76 | 65 | 3 | 2 | 10,0° | 7,61° | 0.15 | FE0080K2K65A15N020 | |
| 0.8 | 1.2 | 3 | 9.6 | 0.76 | 65 | 3 | 2 | 10,0° | 6,51° | 0.15 | FE0080K2K65A15N030 | |
| 0.8 | 1.2 | 6 | 12.6 | 0.76 | 65 | 3 | 2 | 10,0° | 4,98° | 0.15 | FE0080K2K65A15N060 | |
| 0.8 | 1.2 | 10 | 16.6 | 0.76 | 65 | 3 | 2 | 10,0° | 3,44° | 0.15 | FE0080K2K65A15N100 | |
| 1 | 1.5 | 2 | 8.2 | 0.95 | 65 | 3 | 2 | 10,0° | 6,98° | 0.2 | FE0100K2K65A20N020 | |
| 1 | 1.5 | 4 | 10.2 | 0.95 | 65 | 3 | 2 | 10,0° | 5,62° | 0.2 | FE0100K2K65A20N040 | |
| 1 | 1.5 | 8 | 14.2 | 0.95 | 65 | 3 | 2 | 10,0° | 4,40° | 0.2 | FE0100K2K65A20N080 | |
| 1 | 1.5 | 12 | 18.2 | 0.95 | 65 | 3 | 2 | 10,0° | 3,16° | 0.2 | FE0100K2K65A20N120 | |
| 1 | 1.5 | 16 | 22.2 | 0.95 | 65 | 3 | 2 | 10,0° | 2,59° | 0.2 | FE0100K2K65A20N160 | |
| 1 | 1.5 | 20 | 26.2 | 0.95 | 65 | 3 | 2 | 10,0° | 2,19° | 0.2 | FE0100K2K65A20N200 | |
| 1.2 | 1.8 | 2 | 7.7 | 1.14 | 65 | 3 | 2 | 10,0° | 6,67° | 0.25 | FE0120K2K65A25N020 | |
| 1.2 | 1.8 | 4 | 9.7 | 1.14 | 65 | 3 | 2 | 10,0° | 5,31° | 0.25 | FE0120K2K65A25N040 | |
| 1.5 | 2.3 | 4 | 9 | 1.43 | 65 | 3 | 2 | 10,0° | 4,76° | 0.3 | FE0150K2K65A30N040 | |
| 1.5 | 2.3 | 8 | 13 | 1.43 | 65 | 3 | 2 | 10,0° | 3,30° | 0.3 | FE0150K2K65A30N080 | |
| 1.5 | 2.3 | 12 | 17 | 1.43 | 65 | 3 | 2 | 10,0° | 2,52° | 0.3 | FE0150K2K65A30N120 | |
| 1.5 | 2.3 | 20 | 25 | 1.43 | 65 | 3 | 2 | 10,0° | 1,72° | 0.3 | FE0150K2K65A30N200 | |
| 2 | 3 | 4 | 7.8 | 1.9 | 65 | 3 | 4 | 10,0° | 3,65° | 0.5 | FE0200K4K65A50N040 | |
| 2 | 3 | 8 | 11.8 | 1.9 | 65 | 3 | 4 | 10,0° | 2,42° | 0.5 | FE0200K4K65A50N080 | |
| 2 | 3 | 12 | 15.8 | 1.9 | 65 | 3 | 4 | 10,0° | 1,81° | 0.5 | FE0200K4K65A50N120 | |
| 2 | 4 | 16 | 19.8 | 1.9 | 65 | 3 | 4 | 10,0° | 1,45° | 0.5 | FE0200K4K65A50N160 | |
| 2 | 4 | 20 | 23.8 | 1.9 | 65 | 3 | 4 | 10,0° | 1,21° | 0.5 | FE0200K4K65A50N200 |
