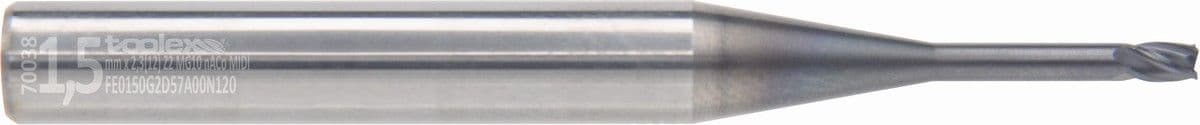

Product images

Click to enlarge

Code key

Specifications

The icons describe the family's reference size in the order of the Toolex article code.

Type
End mill
Grade
MG-10
Reference diameter
Ø 1 mm
Standard
DIN 6528 (flat)
Flutes
2 flutes
Shank type
DIN 6535 HEK
Flute length
40 mm
Helix angle
30°
Edge form
Sharp corner
Coating
nACo Multilayer
Overall length
20 mm

Sizes

Size table

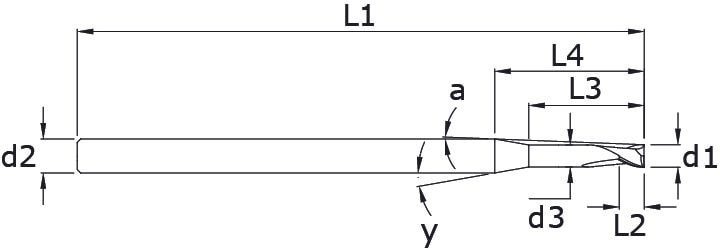

All dimensions in mm; column headings match the symbols on the technical drawing. Add any row to your quote basket by its article code.

45 sizes

Download Excel

Solid carbide end mills - Micro – dimensions and article codes

0.2	0.3	0.4	11.9	0.19	40	3	2	7,0°	6,71°	FE0020G2K40A00N004
0.2	0.3	0.8	12.3	0.19	40	3	2	7,0°	6,50°	FE0020G2K40A00N008
0.2	0.3	1.2	9.2	0.19	40	3	2	10,0°	8,61°	FE0020G2K40A00N012
0.2	0.3	2	10	0.19	40	3	2	10,0°	7,94°	FE0020G2K40A00N020
0.3	0.5	0.6	11.8	0.29	40	3	2	7,0°	6,56°	FE0030G2K40A00N006
0.3	0.5	1.2	9	0.29	40	3	2	10,0°	8,53°	FE0030G2K40A00N012
0.3	0.5	2.4	10.2	0.29	40	3	2	10,0°	7,57°	FE0030G2K40A00N024
0.3	0.5	3	10.8	0.29	40	3	2	10,0°	7,12°	FE0030G2K40A00N030
0.4	0.6	0.8	11.6	0.38	40	3	2	7,0°	6,40°	FE0040G2K40A00N008
0.4	0.6	1.6	9.2	0.38	40	3	2	10,0°	8,70°	FE0040G2K40A00N016
0.4	0.6	3.2	10.8	0.38	40	3	2	10,0°	6,88°	FE0040G2K40A00N032
0.4	0.6	4	11.6	0.38	40	3	2	10,0°	6,41°	FE0040G2K40A00N040
0.5	0.8	1	11.4	0.48	40	3	2	7,0°	6,17°	FE0050G2K40A00N010
0.5	0.8	2	9.3	0.48	40	3	2	10,0°	7,63°	FE0050G2K40A00N020
0.5	0.8	4	11.3	0.48	40	3	2	10,0°	6,30°	FE0050G2K40A00N040
0.5	0.8	6	13.3	0.48	40	3	2	10,0°	5,36°	FE0050G2K40A00N060
0.6	0.9	1.2	11.3	0.57	40	3	2	7,0°	6,10°	FE0060G2K40A00N012
0.6	0.9	2	9.1	0.57	40	3	2	10,0°	7,52°	FE0060G2K40A00N020
0.6	0.9	4	11.1	0.57	40	3	2	10,0°	6,18°	FE0060G2K40A00N040
0.6	0.9	8	15.1	0.57	40	3	2	10,0°	4,55°	FE0060G2K40A00N080
0.7	1.1	1.4	11.1	0.67	40	3	2	7,0°	5,90°	FE0070G2K40A00N014
0.7	1.1	2.5	9.4	0.67	40	3	2	10,0°	6,99°	FE0070G2K40A00N025
0.7	1.1	5	11.9	0.67	40	3	2	10,0°	5,54°	FE0070G2K40A00N050
0.7	1.1	8	14.9	0.67	40	3	2	10,0°	4,43°	FE0070G2K40A00N080
0.8	1.2	2	8.6	0.76	40	3	2	10,0°	7,61°	FE0080G2K40A00N020
0.8	1.2	3	9.6	0.76	40	3	2	10,0°	6,51°	FE0080G2K40A00N030
0.8	1.2	6	12.6	0.76	40	3	2	10,0°	4,98°	FE0080G2K40A00N060
0.8	1.2	10	16.6	0.76	50	3	2	10,0°	3,44°	FE0080G2K50A00N100
1	1.5	2	8.2	0.95	40	3	2	10,0°	6,98°	FE0100G2K40A00N020
1	1.5	4	10.2	0.95	40	3	2	10,0°	5,62°	FE0100G2K40A00N040
1	1.5	8	14.2	0.95	40	3	2	10,0°	4,40°	FE0100G2K40A00N080
1	1.5	12	18.2	0.95	50	3	2	10,0°	3,16°	FE0100G2K50A00N120
1	1.5	16	22.2	0.95	50	3	2	10,0°	2,59°	FE0100G2K50A00N160
1	1.5	20	26.2	0.95	50	3	2	10,0°	2,19°	FE0100G2K50A00N200
1.2	1.8	2	7.7	1.14	40	3	2	10,0°	6,67°	FE0120G2K40A00N020
1.2	1.8	4	9.7	1.14	40	3	2	10,0°	5,31°	FE0120G2K40A00N040
1.5	2.3	4	9	1.43	40	3	2	10,0°	4,76°	FE0150G2K40A00N040
1.5	2.3	8	13	1.43	40	3	2	10,0°	3,30°	FE0150G2K40A00N080
1.5	2.3	12	17	1.43	50	3	2	10,0°	2,52°	FE0150G2K50A00N120
1.5	2.3	20	25	1.43	50	3	2	10,0°	1,72°	FE0150G2K50A00N200
2	3	4	7.8	1.9	40	3	4	10,0°	3,65°	FE0200G4K40A00N040
2	3	8	11.8	1.9	40	3	4	10,0°	2,42°	FE0200G4K40A00N080
2	3	12	15.8	1.9	50	3	4	10,0°	1,81°	FE0200G4K50A00N120
2	4	16	19.8	1.9	50	3	4	10,0°	1,45°	FE0200G4K50A00N160
2	4	20	23.8	1.9	50	3	4	10,0°	1,21°	FE0200G4K50A00N200
