Name: Solid carbide end mills with corner radius - Mini Hard
Brand: Toolex

Images

Product images

Click to enlarge

Code key

Specifications

The icons describe the family's reference size in the order of the Toolex article code.

Type
End mill
Grade
NG-12
Reference diameter
Ø 1 mm
Standard
Toolex corner radius
Flutes
2 flutes
Shank type
Toolex (reduced)
Flute length
20 mm
Helix angle
30°
Edge form
Corner radius (20)
Coating
nACo Multilayer
Overall length
50 mm

Sizes

Size table

All dimensions in mm; column headings match the symbols on the technical drawing. Add any row to your quote basket by its article code.

43 sizes

Download Excel

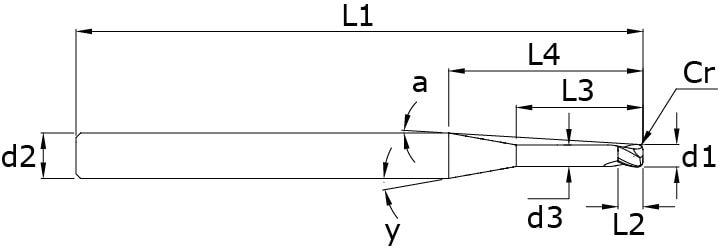

Solid carbide end mills with corner radius - Mini Hard – dimensions and article codes

0.5	0.8	1	15.55	0.48	50	4	2	7,00°	6,42°	0.1	FH0050K2N50A10N010
0.5	0.8	2	12.18	0.48	50	4	2	10,00°	8,17°	0.1	FH0050K2N50A10N020
0.5	0.8	4	14.18	0.48	50	4	2	10,00°	7,03°	0.1	FH0050K2N50A10N040
0.5	0.8	6	16.18	0.48	50	4	2	10,00°	6,17°	0.1	FH0050K2N50A10N060
0.6	0.9	1.2	15.35	0.57	50	4	2	10,00°	6,32°	0.1	FH0060K2N50A10N012
0.6	0.9	2	11.95	0.57	50	4	2	10,00°	8,09°	0.1	FH0060K2N50A10N020
0.6	0.9	4	13.95	0.57	50	4	2	10,00°	6,94°	0.1	FH0060K2N50A10N040
0.6	0.9	8	17.95	0.57	50	4	2	10,00°	5,41°	0.1	FH0060K2N50A10N080
0.7	1.1	1.4	15.18	0.67	50	4	2	7,00°	6,20°	0.1	FH0070K2N50A10N014
0.7	1.1	2.5	12.21	0.67	50	4	2	10,00°	7,69°	0.1	FH0070K2N50A10N025
0.7	1.1	5	14.71	0.67	50	4	2	10,00°	6,40°	0.1	FH0070K2N50A10N050
0.7	1.1	8	17.71	0.67	50	4	2	10,00°	5,32°	0.1	FH0070K2N50A10N080
0.8	1.2	1.6	11.1	0.76	50	4	2	10,00°	8,20°	0.15	FH0080K2N50A15N016
0.8	1.2	3	12.5	0.76	50	4	2	10,00°	7,29°	0.15	FH0080K2N50A15N030
0.8	1.2	6	15.5	0.76	50	4	2	10,00°	5,89°	0.15	FH0080K2N50A15N060
0.8	1.2	10	19.5	0.76	50	4	2	10,00°	4,69°	0.15	FH0080K2N50A15N100
1	1.5	2	11.01	0.95	50	4	2	10,00°	7,75°	0.2	FH0100K2N50A20N020
1	1.5	4	13.01	0.95	50	4	2	10,00°	6,57°	0.2	FH0100K2N50A20N040
1	1.5	8	17.01	0.95	50	4	2	10,00°	5,03°	0.2	FH0100K2N50A20N080
1	1.5	12	21.01	0.95	50	4	2	10,00°	4,08°	0.2	FH0100K2N50A20N120
1	1.5	16	25.01	0.95	50	4	2	10,00°	3,43°	0.2	FH0100K2N50A20N160
1	1.5	20	29.01	0.95	50	4	2	10,00°	2,96°	0.2	FH0100K2N50A20N200
1.2	1.8	2	10.54	1.14	50	4	2	10,00°	7,56°	0.25	FH0120K2N50A25N020
1.2	1.8	4	12.54	1.14	50	4	2	10,00°	6,37°	0.25	FH0120K2N50A25N040
1.5	2.3	4	11.85	1.43	50	4	2	10,00°	6,02°	0.3	FH0150K2N50A30N040
1.5	2.3	8	15.85	1.43	50	4	2	10,00°	4,50°	0.3	FH0150K2N50A30N080
1.5	2.3	12	19.85	1.43	50	4	2	10,00°	3,60°	0.3	FH0150K2N50A30N120
1.5	2.3	20	27.85	1.43	50	4	2	10,00°	2,57°	0.3	FH0150K2N50A30N200
2	3	4	10.68	1.9	50	4	4	10,00°	5,35°	0.5	FH0200K4N50A50N040
2	3	8	14.68	1.9	50	4	4	10,00°	3,09°	0.5	FH0200K4N50A50N080
2	3	12	18.68	1.9	50	4	4	10,00°	3,06°	0.5	FH0200K4N50A50N120
2	3	16	22.68	1.9	50	4	4	10,00°	2,52°	0.5	FH0200K4N50A50N160
2	3	20	26.68	1.9	50	4	4	10,00°	2,14°	0.5	FH0200K4N50A50N200
2.5	3.8	5	10.51	2.38	50	4	4	10,00°	4,08°	0.5	FH0250K4N50A50N050
2.5	3.8	8	13.51	2.38	50	4	4	10,00°	3,17°	0.5	FH0250K4N50A50N080
2.5	3.8	12	17.51	2.38	50	4	4	10,00°	2,45°	0.5	FH0250K4N50A50N120
2.5	3.8	16	21.51	2.38	50	4	4	10,00°	1,99°	0.5	FH0250K4N50A50N160
2.5	3.8	20	25.51	2.38	50	4	4	10,00°	1,68°	0.5	FH0250K4N50A50N200
3	4.5	6	10.34	2.85	50	4	4	10,00°	2,76°	0.5	FH0300K4N50A50N060
3	4.5	8	12.34	2.85	50	4	4	10,00°	2,32°	0.5	FH0300K4N50A50N080
3	4.5	12	16.34	2.85	50	4	4	10,00°	1,75°	0.5	FH0300K4N50A50N120
3	4.5	16	20.34	2.85	50	4	4	10,00°	1,40°	0.5	FH0300K4N50A50N160
3	4.5	20	24.34	2.85	50	4	4	10,00°	1,17°	0.5	FH0300K4N50A50N200
