Name: Solid carbide end mills with corner radius - Alu Mini Long
Brand: Toolex

Images

Product images

Click to enlarge

Code key

Specifications

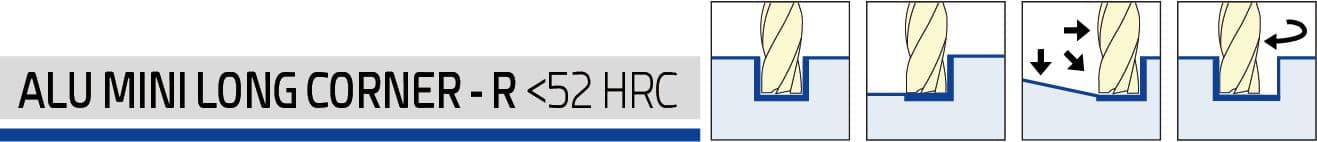

The icons describe the family's reference size in the order of the Toolex article code.

Type
End mill
Grade
NG-07
Reference diameter
Ø 1 mm
Standard
Toolex corner radius
Flutes
2 flutes
Shank type
Toolex (reduced)
Flute length
20 mm
Helix angle
30°
Edge form
Corner radius (20)
Coating
DRYCUT
Overall length
80 mm

Sizes

Size table

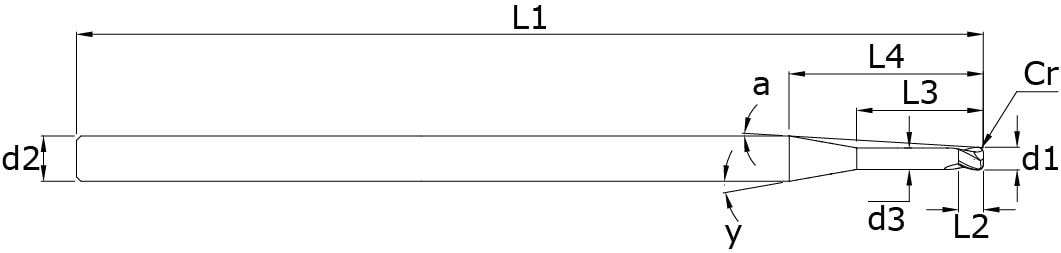

All dimensions in mm; column headings match the symbols on the technical drawing. Add any row to your quote basket by its article code.

43 sizes

Download Excel

Solid carbide end mills with corner radius - Alu Mini Long – dimensions and article codes

0.5	0.8	1	15.55	0.48	80	4	2	7,00°	6,42°	0.1	FG0050K2N80A10D010
0.5	0.8	2	12.18	0.48	80	4	2	10,00°	8,17°	0.1	FG0050K2N80A10D020
0.5	0.8	4	14.18	0.48	80	4	2	10,00°	7,03°	0.1	FG0050K2N80A10D040
0.5	0.8	6	16.18	0.48	80	4	2	10,00°	6,17°	0.1	FG0050K2N80A10D060
0.6	0.9	1.2	15.35	0.57	80	4	2	10,00°	6,32°	0.1	FG0060K2N80A10D012
0.6	0.9	2	11.95	0.57	80	4	2	10,00°	8,09°	0.1	FG0060K2N80A10D020
0.6	0.9	4	13.95	0.57	80	4	2	10,00°	6,94°	0.1	FG0060K2N80A10D040
0.6	0.9	8	17.95	0.57	80	4	2	10,00°	5,41°	0.1	FG0060K2N80A10D080
0.7	1.1	1.4	15.18	0.67	80	4	2	7,00°	6,20°	0.1	FG0070K2N80A10D014
0.7	1.1	2.5	12.21	0.67	80	4	2	10,00°	7,69°	0.1	FG0070K2N80A10D025
0.7	1.1	5	14.71	0.67	80	4	2	10,00°	6,40°	0.1	FG0070K2N80A10D050
0.7	1.1	8	17.71	0.67	80	4	2	10,00°	5,32°	0.1	FG0070K2N80A10D080
0.8	1.2	1.6	11.1	0.76	80	4	2	10,00°	8,20°	0.15	FG0080K2N80A15D016
0.8	1.2	3	12.5	0.76	80	4	2	10,00°	7,29°	0.15	FG0080K2N80A15D030
0.8	1.2	6	15.5	0.76	80	4	2	10,00°	5,89°	0.15	FG0080K2N80A15D060
0.8	1.2	10	19.5	0.76	80	4	2	10,00°	4,69°	0.15	FG0080K2N80A15D100
1	1.5	2	11.01	0.95	80	4	2	10,00°	7,75°	0.2	FG0100K2N80A20D020
1	1.5	4	13.01	0.95	80	4	2	10,00°	6,57°	0.2	FG0100K2N80A20D040
1	1.5	8	17.01	0.95	80	4	2	10,00°	5,03°	0.2	FG0100K2N80A20D080
1	1.5	12	21.01	0.95	80	4	2	10,00°	4,08°	0.2	FG0100K2N80A20D120
1	1.5	16	25.01	0.95	80	4	2	10,00°	3,43°	0.2	FG0100K2N80A20D160
1	1.5	20	29.01	0.95	80	4	2	10,00°	2,96°	0.2	FG0100K2N80A20D200
1.2	1.8	2	10.54	1.14	80	4	2	10,00°	7,56°	0.25	FG0120K2N80A25D020
1.2	1.8	4	12.54	1.14	80	4	2	10,00°	6,37°	0.25	FG0120K2N80A25D040
1.5	2.3	4	11.85	1.43	80	4	2	10,00°	6,02°	0.3	FG0150K2N80A30D040
1.5	2.3	8	15.85	1.43	80	4	2	10,00°	4,50°	0.3	FG0150K2N80A30D080
1.5	2.3	12	19.85	1.43	80	4	2	10,00°	3,60°	0.3	FG0150K2N80A30D120
1.5	2.3	20	27.85	1.43	80	4	2	10,00°	2,57°	0.3	FG0150K2N80A30D200
2	3	4	10.68	1.9	80	4	2	10,00°	5,35°	0.5	FG0200K2N80A50D040
2	3	8	14.68	1.9	80	4	2	10,00°	3,09°	0.5	FG0200K2N80A50D080
2	3	12	18.68	1.9	80	4	2	10,00°	3,06°	0.5	FG0200K2N80A50D120
2	3	16	22.68	1.9	80	4	2	10,00°	2,52°	0.5	FG0200K2N80A50D160
2	3	20	26.68	1.9	80	4	2	10,00°	2,14°	0.5	FG0200K2N80A50D200
2.5	3.8	5	10.51	2.38	80	4	2	10,00°	4,08°	0.5	FG0250K2N80A50D050
2.5	3.8	8	13.51	2.38	80	4	2	10,00°	3,17°	0.5	FG0250K2N80A50D080
2.5	3.8	12	17.51	2.38	80	4	2	10,00°	2,45°	0.5	FG0250K2N80A50D120
2.5	3.8	16	21.51	2.38	80	4	2	10,00°	1,99°	0.5	FG0250K2N80A50D160
2.5	3.8	20	25.51	2.38	80	4	2	10,00°	1,68°	0.5	FG0250K2N80A50D200
3	4.5	6	10.34	2.85	80	4	2	10,00°	2,76°	0.5	FG0300K2N80A50D060
3	4.5	8	12.34	2.85	80	4	2	10,00°	2,32°	0.5	FG0300K2N80A50D080
3	4.5	12	16.34	2.85	80	4	2	10,00°	1,75°	0.5	FG0300K2N80A50D120
3	4.5	16	20.34	2.85	80	4	2	10,00°	1,40°	0.5	FG0300K2N80A50D160
3	4.5	20	24.34	2.85	80	4	2	10,00°	1,17°	0.5	FG0300K2N80A50D200
