Fräser
VHM - Radiusfräser - Micro Lang
- Durchmesserbereich
- Ø 0,2–2 mm
- Abmessungen
- 45 Abmessungen
- Schneidenzahl (Z)
- 2
- Beschichtung
- nACo Multilayer
- Drallwinkel
- 30°
- Norm
- DIN 6528 (Radius)
Bilder
Produktbilder
Zum Vergrößern klicken
Code-Schlüssel
Kenndaten
Die Symbole beschreiben die Referenzabmessung der Produktfamilie in der Reihenfolge der Toolex-Artikelnummer.
Typ
Fräser
Sorte
MG-10
Referenzdurchmesser
Ø 1 mm
Norm
DIN 6528 (Radius)
Schneidenzahl
2 Schneiden
Schaftform
DIN 6535 HEK
Schneidenlänge
20 mm
Drallwinkel
30°
Eckenform
Radius (50)
Beschichtung
nACo Multilayer
Gesamtlänge
65 mm
Abmessungen
Maßtabelle

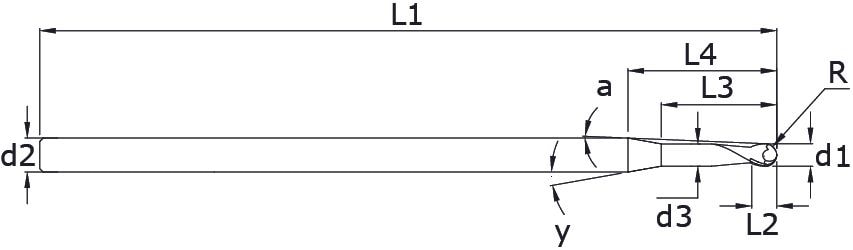

Alle Maße in mm; die Spaltenköpfe entsprechen den Symbolen der technischen Zeichnung. Jede Zeile lässt sich mit ihrer Artikelnummer in den Angebotskorb legen.
45 Abmessungen
Excel herunterladen| Angebot | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.2 | 0.3 | 0.4 | 11.9 | 0.19 | 65 | 3 | 2 | 7,0° | 6,71° | 0.1 | FE0020R2K65A10N004 | |
| 0.2 | 0.3 | 0.8 | 12.3 | 0.19 | 65 | 3 | 2 | 7,0° | 6,50° | 0.1 | FE0020R2K65A10N008 | |
| 0.2 | 0.3 | 1.2 | 9.2 | 0.19 | 65 | 3 | 2 | 10,0° | 8,61° | 0.1 | FE0020R2K65A10N012 | |
| 0.2 | 0.3 | 2 | 10 | 0.19 | 65 | 3 | 2 | 10,0° | 7,94° | 0.1 | FE0020R2K65A10N020 | |
| 0.3 | 0.5 | 0.6 | 11.8 | 0.29 | 65 | 3 | 2 | 7,0° | 6,56° | 0.15 | FE0030R2K65A15N006 | |
| 0.3 | 0.5 | 1.2 | 9 | 0.29 | 65 | 3 | 2 | 10,0° | 8,53° | 0.15 | FE0030R2K65A15N012 | |
| 0.3 | 0.5 | 2.4 | 10.2 | 0.29 | 65 | 3 | 2 | 10,0° | 7,57° | 0.15 | FE0030R2K65A15N024 | |
| 0.3 | 0.5 | 3 | 10.8 | 0.29 | 65 | 3 | 2 | 10,0° | 7,12° | 0.15 | FE0030R2K65A15N030 | |
| 0.4 | 0.6 | 0.8 | 11.6 | 0.38 | 65 | 3 | 2 | 7,0° | 6,40° | 0.2 | FE0040R2K65A20N008 | |
| 0.4 | 0.6 | 1.6 | 9.2 | 0.38 | 65 | 3 | 2 | 10,0° | 8,70° | 0.2 | FE0040R2K65A20N016 | |
| 0.4 | 0.6 | 3.2 | 10.8 | 0.38 | 65 | 3 | 2 | 10,0° | 6,88° | 0.2 | FE0040R2K65A20N032 | |
| 0.4 | 0.6 | 4 | 11.6 | 0.38 | 65 | 3 | 2 | 10,0° | 6,41° | 0.2 | FE0040R2K65A20N040 | |
| 0.5 | 0.8 | 1 | 11.4 | 0.48 | 65 | 3 | 2 | 7,0° | 6,17° | 0.25 | FE0050R2K65A25N010 | |
| 0.5 | 0.8 | 2 | 9.3 | 0.48 | 65 | 3 | 2 | 10,0° | 7,63° | 0.25 | FE0050R2K65A25N020 | |
| 0.5 | 0.8 | 4 | 11.3 | 0.48 | 65 | 3 | 2 | 10,0° | 6,30° | 0.25 | FE0050R2K65A25N040 | |
| 0.5 | 0.8 | 6 | 13.3 | 0.48 | 65 | 3 | 2 | 10,0° | 5,36° | 0.25 | FE0050R2K65A25N060 | |
| 0.6 | 0.9 | 1.2 | 11.3 | 0.57 | 65 | 3 | 2 | 7,0° | 6,10° | 0.3 | FE0060R2K65A30N012 | |
| 0.6 | 0.9 | 2 | 9.1 | 0.57 | 65 | 3 | 2 | 10,0° | 7,52° | 0.3 | FE0060R2K65A30N020 | |
| 0.6 | 0.9 | 4 | 11.1 | 0.57 | 65 | 3 | 2 | 10,0° | 6,18° | 0.3 | FE0060R2K65A30N040 | |
| 0.6 | 0.9 | 8 | 15.1 | 0.57 | 65 | 3 | 2 | 10,0° | 4,55° | 0.3 | FE0060R2K65A30N080 | |
| 0.7 | 1.1 | 1.4 | 11.1 | 0.67 | 65 | 3 | 2 | 7,0° | 5,90° | 0.35 | FE0070R2K65A35N014 | |
| 0.7 | 1.1 | 2.5 | 9.4 | 0.67 | 65 | 3 | 2 | 10,0° | 6,99° | 0.35 | FE0070R2K65A35N025 | |
| 0.7 | 1.1 | 5 | 11.9 | 0.67 | 65 | 3 | 2 | 10,0° | 5,54° | 0.35 | FE0070R2K65A35N050 | |
| 0.7 | 1.1 | 8 | 14.9 | 0.67 | 65 | 3 | 2 | 10,0° | 4,43° | 0.35 | FE0070R2K65A35N080 | |
| 0.8 | 1.2 | 2 | 8.6 | 0.76 | 65 | 3 | 2 | 10,0° | 7,61° | 0.4 | FE0080R2K65A40N020 | |
| 0.8 | 1.2 | 3 | 9.6 | 0.76 | 65 | 3 | 2 | 10,0° | 6,51° | 0.4 | FE0080R2K65A40N030 | |
| 0.8 | 1.2 | 6 | 12.6 | 0.76 | 65 | 3 | 2 | 10,0° | 4,98° | 0.4 | FE0080R2K65A40N060 | |
| 0.8 | 1.2 | 10 | 16.6 | 0.76 | 65 | 3 | 2 | 10,0° | 3,44° | 0.4 | FE0080R2K65A40N100 | |
| 1 | 1.5 | 2 | 8.2 | 0.95 | 65 | 3 | 2 | 10,0° | 6,98° | 0.5 | FE0100R2K65A50N020 | |
| 1 | 1.5 | 4 | 10.2 | 0.95 | 65 | 3 | 2 | 10,0° | 5,62° | 0.5 | FE0100R2K65A50N040 | |
| 1 | 1.5 | 8 | 14.2 | 0.95 | 65 | 3 | 2 | 10,0° | 4,40° | 0.5 | FE0100R2K65A50N080 | |
| 1 | 1.5 | 12 | 18.2 | 0.95 | 65 | 3 | 2 | 10,0° | 3,16° | 0.5 | FE0100R2K65A50N120 | |
| 1 | 1.5 | 16 | 22.2 | 0.95 | 65 | 3 | 2 | 10,0° | 2,59° | 0.5 | FE0100R2K65A50N160 | |
| 1 | 1.5 | 20 | 26.2 | 0.95 | 65 | 3 | 2 | 10,0° | 2,19° | 0.5 | FE0100R2K65A50N200 | |
| 1.2 | 1.8 | 2 | 7.7 | 1.14 | 65 | 3 | 2 | 10,0° | 6,67° | 0.6 | FE0120R2K65A60N020 | |
| 1.2 | 1.8 | 4 | 9.7 | 1.14 | 65 | 3 | 2 | 10,0° | 5,31° | 0.6 | FE0120R2K65A60N040 | |
| 1.5 | 2.3 | 4 | 9 | 1.43 | 65 | 3 | 2 | 10,0° | 4,76° | 0.75 | FE0150R2K65A75N040 | |
| 1.5 | 2.3 | 8 | 13 | 1.43 | 65 | 3 | 2 | 10,0° | 3,30° | 0.75 | FE0150R2K65A75N080 | |
| 1.5 | 2.3 | 12 | 17 | 1.43 | 65 | 3 | 2 | 10,0° | 2,52° | 0.75 | FE0150R2K65A75N120 | |
| 1.5 | 2.3 | 20 | 25 | 1.43 | 65 | 3 | 2 | 10,0° | 1,72° | 0.75 | FE0150R2K65A75N200 | |
| 2 | 3 | 4 | 7.8 | 1.9 | 65 | 3 | 2 | 10,0° | 3,65° | 1 | FE0200R2K65A10N040 | |
| 2 | 3 | 8 | 11.8 | 1.9 | 65 | 3 | 2 | 10,0° | 2,42° | 1 | FE0200R2K65A10N080 | |
| 2 | 3 | 12 | 15.8 | 1.9 | 65 | 3 | 2 | 10,0° | 1,81° | 1 | FE0200R2K65A10N120 | |
| 2 | 4 | 16 | 19.8 | 1.9 | 65 | 3 | 2 | 10,0° | 1,45° | 1 | FE0200R2K65A10N160 | |
| 2 | 4 | 20 | 23.8 | 1.9 | 65 | 3 | 2 | 10,0° | 1,21° | 1 | FE0200R2K65A10N200 |
