Fräser
VHM - Radiusfräser - Mini
- Durchmesserbereich
- Ø 0,2–3 mm
- Abmessungen
- 55 Abmessungen
- Schneidenzahl (Z)
- 2
- Beschichtung
- nACo Multilayer
- Drallwinkel
- 30°
- Norm
- DIN 6528 (Radius)
Bilder
Produktbilder
Zum Vergrößern klicken
Code-Schlüssel
Kenndaten
Die Symbole beschreiben die Referenzabmessung der Produktfamilie in der Reihenfolge der Toolex-Artikelnummer.
Typ
Fräser
Sorte
MG-10
Referenzdurchmesser
Ø 1 mm
Norm
DIN 6528 (Radius)
Schneidenzahl
2 Schneiden
Schaftform
Toolex (reduziert)
Schneidenlänge
20 mm
Drallwinkel
30°
Eckenform
Radius (50)
Beschichtung
nACo Multilayer
Gesamtlänge
50 mm
Abmessungen
Maßtabelle

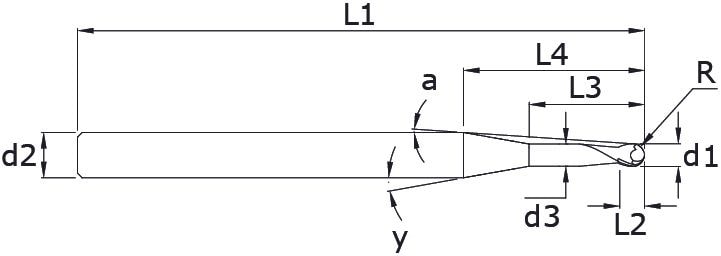

Alle Maße in mm; die Spaltenköpfe entsprechen den Symbolen der technischen Zeichnung. Jede Zeile lässt sich mit ihrer Artikelnummer in den Angebotskorb legen.
55 Abmessungen
Excel herunterladen| Angebot | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.2 | 0.3 | 0.4 | 15.98 | 0.19 | 50 | 4 | 2 | 7,00 ° | 6,78° | 0.1 | FE0020R2N50A10N004 | |
| 0.2 | 0.3 | 0.8 | 16.38 | 0.19 | 50 | 4 | 2 | 7,00 ° | 6,62° | 0.1 | FE0020R2N50A10N008 | |
| 0.2 | 0.3 | 1.2 | 12.08 | 0.19 | 50 | 4 | 2 | 10,00 ° | 8,94° | 0.1 | FE0020R2N50A10N012 | |
| 0.2 | 0.3 | 2 | 12.88 | 0.19 | 50 | 4 | 2 | 10,00 ° | 8,39° | 0.1 | FE0020R2N50A10N020 | |
| 0.3 | 0.5 | 0.6 | 15.85 | 0.29 | 50 | 4 | 2 | 7,00 ° | 6,66° | 0.15 | FE0030R2N50A15N006 | |
| 0.3 | 0.5 | 1.2 | 11.85 | 0.29 | 50 | 4 | 2 | 10,00 ° | 8,88° | 0.15 | FE0030R2N50A15N012 | |
| 0.3 | 0.5 | 2.4 | 13.05 | 0.29 | 50 | 4 | 2 | 10,00 ° | 8,70° | 0.15 | FE0030R2N50A15N024 | |
| 0.3 | 0.5 | 3 | 13.65 | 0.29 | 50 | 4 | 2 | 10,00 ° | 7,72° | 0.15 | FE0030R2N50A15N030 | |
| 0.4 | 0.6 | 0.8 | 15.66 | 0.38 | 50 | 4 | 2 | 7,00 ° | 6,55° | 0.2 | FE0040R2N50A20N008 | |
| 0.4 | 0.6 | 1.6 | 12.01 | 0.38 | 50 | 4 | 2 | 10,00 ° | 8,52° | 0.2 | FE0040R2N50A20N016 | |
| 0.4 | 0.6 | 3.2 | 13.61 | 0.38 | 50 | 4 | 2 | 10,00 ° | 7,53° | 0.2 | FE0040R2N50A20N032 | |
| 0.4 | 0.6 | 4 | 14.41 | 0.38 | 50 | 4 | 2 | 10,00 ° | 6,92° | 0.2 | FE0040R2N50A20N040 | |
| 0.5 | 0.8 | 1 | 15.55 | 0.48 | 50 | 4 | 2 | 7,00 ° | 6,42° | 0.25 | FE0050R2N50A25N010 | |
| 0.5 | 0.8 | 2 | 12.18 | 0.48 | 50 | 4 | 2 | 10,00 ° | 8,17° | 0.25 | FE0050R2N50A25N020 | |
| 0.5 | 0.8 | 4 | 14.18 | 0.48 | 50 | 4 | 2 | 10,00 ° | 7,03° | 0.25 | FE0050R2N50A25N040 | |
| 0.5 | 0.8 | 6 | 16.18 | 0.48 | 50 | 4 | 2 | 10,00 ° | 6,17° | 0.25 | FE0050R2N50A25N060 | |
| 0.6 | 0.9 | 1.2 | 15.35 | 0.57 | 50 | 4 | 2 | 10,00 ° | 6,32° | 0.3 | FE0060R2N50A30N012 | |
| 0.6 | 0.9 | 2 | 11.95 | 0.57 | 50 | 4 | 2 | 10,00 ° | 8,09° | 0.3 | FE0060R2N50A30N020 | |
| 0.6 | 0.9 | 4 | 13.95 | 0.57 | 50 | 4 | 2 | 10,00 ° | 6,94° | 0.3 | FE0060R2N50A30N040 | |
| 0.6 | 0.9 | 8 | 17.95 | 0.57 | 50 | 4 | 2 | 10,00 ° | 5,41° | 0.3 | FE0060R2N50A30N080 | |
| 0.7 | 1.1 | 1.4 | 15.18 | 0.67 | 50 | 4 | 2 | 7,00 ° | 6,20° | 0.35 | FE0070R2N50A35N014 | |
| 0.7 | 1.1 | 2.5 | 12.21 | 0.67 | 50 | 4 | 2 | 10,00 ° | 7,69° | 0.35 | FE0070R2N50A35N025 | |
| 0.7 | 1.1 | 5 | 14.71 | 0.67 | 50 | 4 | 2 | 10,00 ° | 6,40° | 0.35 | FE0070R2N50A35N050 | |
| 0.7 | 1.1 | 8 | 17.71 | 0.67 | 50 | 4 | 2 | 10,00 ° | 5,32° | 0.35 | FE0070R2N50A35N080 | |
| 0.8 | 1.2 | 1.6 | 11.1 | 0.76 | 50 | 4 | 2 | 10,00 ° | 8,20° | 0.4 | FE0080R2N50A40N016 | |
| 0.8 | 1.2 | 3 | 12.5 | 0.76 | 50 | 4 | 2 | 10,00 ° | 7,29° | 0.4 | FE0080R2N50A40N030 | |
| 0.8 | 1.2 | 6 | 15.5 | 0.76 | 50 | 4 | 2 | 10,00 ° | 5,89° | 0.4 | FE0080R2N50A40N060 | |
| 0.8 | 1.2 | 10 | 19.5 | 0.76 | 50 | 4 | 2 | 10,00 ° | 4,69° | 0.4 | FE0080R2N50A40N100 | |
| 1 | 1.5 | 2 | 11.01 | 0.95 | 50 | 4 | 2 | 10,00 ° | 7,75° | 0.5 | FE0100R2N50A50N020 | |
| 1 | 1.5 | 4 | 13.01 | 0.95 | 50 | 4 | 2 | 10,00 ° | 6,57° | 0.5 | FE0100R2N50A50N040 | |
| 1 | 1.5 | 8 | 17.01 | 0.95 | 50 | 4 | 2 | 10,00 ° | 5,03° | 0.5 | FE0100R2N50A50N080 | |
| 1 | 1.5 | 12 | 21.01 | 0.95 | 50 | 4 | 2 | 10,00 ° | 4,08° | 0.5 | FE0100R2N50A50N120 | |
| 1 | 1.5 | 16 | 25.01 | 0.95 | 50 | 4 | 2 | 10,00 ° | 3,43° | 0.5 | FE0100R2N50A50N160 | |
| 1 | 1.5 | 20 | 29.01 | 0.95 | 50 | 4 | 2 | 10,00 ° | 2,96° | 0.5 | FE0100R2N50A50N200 | |
| 1.2 | 1.8 | 2 | 10.54 | 1.14 | 50 | 4 | 2 | 10,00 ° | 7,56° | 0.6 | FE0120R2N50A60N020 | |
| 1.2 | 1.8 | 4 | 12.54 | 1.14 | 50 | 4 | 2 | 10,00 ° | 6,37° | 0.6 | FE0120R2N50A60N040 | |
| 1.5 | 2.3 | 4 | 11.85 | 1.43 | 50 | 4 | 2 | 10,00 ° | 6,02° | 0.75 | FE0150R2N50A75N040 | |
| 1.5 | 2.3 | 8 | 15.85 | 1.43 | 50 | 4 | 2 | 10,00 ° | 4,50° | 0.75 | FE0150R2N50A75N080 | |
| 1.5 | 2.3 | 12 | 19.85 | 1.43 | 50 | 4 | 2 | 10,00 ° | 3,60° | 0.75 | FE0150R2N50A75N120 | |
| 1.5 | 2.3 | 20 | 27.85 | 1.43 | 50 | 4 | 2 | 10,00 ° | 2,57° | 0.75 | FE0150R2N50A75N200 | |
| 2 | 3 | 4 | 10.68 | 1.9 | 50 | 4 | 2 | 10,00 ° | 5,35° | 1 | FE0200R2N50A10N040 | |
| 2 | 3 | 8 | 14.68 | 1.9 | 50 | 4 | 2 | 10,00 ° | 3,09° | 1 | FE0200R2N50A10N080 | |
| 2 | 3 | 12 | 18.68 | 1.9 | 50 | 4 | 2 | 10,00 ° | 3,06° | 1 | FE0200R2N50A10N120 | |
| 2 | 3 | 16 | 22.68 | 1.9 | 50 | 4 | 2 | 10,00 ° | 2,52° | 1 | FE0200R2N50A10N160 | |
| 2 | 3 | 20 | 26.68 | 1.9 | 50 | 4 | 2 | 10,00 ° | 2,14° | 1 | FE0200R2N50A10N200 | |
| 2.5 | 3.8 | 5 | 10.51 | 2.38 | 50 | 4 | 2 | 10,00 ° | 4,08° | 1.25 | FE0250R2N50A13N050 | |
| 2.5 | 3.8 | 8 | 13.51 | 2.38 | 50 | 4 | 2 | 10,00 ° | 3,17° | 1.25 | FE0250R2N50A13N080 | |
| 2.5 | 3.8 | 12 | 17.51 | 2.38 | 50 | 4 | 2 | 10,00 ° | 2,45° | 1.25 | FE0250R2N50A13N120 | |
| 2.5 | 3.8 | 16 | 21.51 | 2.38 | 50 | 4 | 2 | 10,00 ° | 1,99° | 1.25 | FE0250R2N50A13N160 | |
| 2.5 | 3.8 | 20 | 25.51 | 2.38 | 50 | 4 | 2 | 10,00 ° | 1,68° | 1.25 | FE0250R2N50A13N200 | |
| 3 | 4.5 | 6 | 10.34 | 2.85 | 50 | 4 | 2 | 10,00 ° | 2,76° | 1.5 | FE0300R2N50A15N060 | |
| 3 | 4.5 | 8 | 12.34 | 2.85 | 50 | 4 | 2 | 10,00 ° | 2,32° | 1.5 | FE0300R2N50A15N080 | |
| 3 | 4.5 | 12 | 16.34 | 2.85 | 50 | 4 | 2 | 10,00 ° | 1,75° | 1.5 | FE0300R2N50A15N120 | |
| 3 | 4.5 | 16 | 20.34 | 2.85 | 50 | 4 | 2 | 10,00 ° | 1,40° | 1.5 | FE0300R2N50A15N160 | |
| 3 | 4.5 | 20 | 24.34 | 2.85 | 50 | 4 | 2 | 10,00 ° | 1,17° | 1.5 | FE0300R2N50A15N200 |
