End Mills
Solid carbide conical end mills - Taper 30'–1°30'
- Diameter range
- Ø 2–12 mm
- Sizes
- 24 sizes
- Flutes (Z)
- 2
- Coating
- nACo Multilayer
- Helix angle
- Conical
- Carbide grade
- MG-10
Images

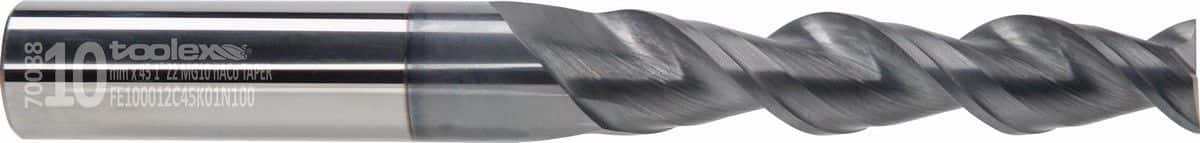

Product images
Click to enlarge
Code key
Specifications
The icons describe the family's reference size in the order of the Toolex article code.
Type
End mill
Grade
MG-10
Reference diameter
Ø 10 mm
Flutes
2 flutes
Shank type
DIN 6535 HA
Flute length
45 mm
Helix angle
Conical
Edge form
Chamfer 0.1 × 45°
Coating
nACo Multilayer
Overall length
100 mm
Sizes
Size table

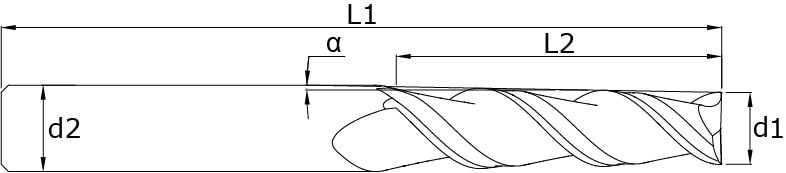

All dimensions in mm; column headings match the symbols on the technical drawing. Add any row to your quote basket by its article code.
Article code for quote
24 sizes
Download Excel| Quote | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 20 | 65 | 3 | 2 | 30' | 2.35 | FE0200Y2C20K01B065 | FE0200Y2C20K01N065 | |
| 3 | 25 | 65 | 4 | 2 | 30' | 3.45 | FE0300Y2C25K01B065 | FE0300Y2C25K01N065 | |
| 4 | 30 | 65 | 5 | 2 | 30' | 4.5 | FE0400Y2C30K01B065 | FE0400Y2C30K01N065 | |
| 5 | 30 | 68 | 6 | 2 | 30' | 5.5 | FE0500Y2C30K01B068 | FE0500Y2C30K01N068 | |
| 6 | 40 | 88 | 8 | 2 | 30' | 6.8 | FE0600Y2C40K01B088 | FE0600Y2C40K01N088 | |
| 8 | 45 | 100 | 10 | 2 | 30' | 8.8 | FE0800Y2C45K01B100 | FE0800Y2C45K01N100 | |
| 10 | 45 | 100 | 12 | 2 | 30' | 10.8 | FE1000Y2C45K01B100 | FE1000Y2C45K01N100 | |
| 12 | 45 | 100 | 14 | 2 | 30' | 12.8 | FE1200Y2C45K01B100 | FE1200Y2C45K01N100 | |
| 2 | 20 | 65 | 3 | 2 | 1° | 2.7 | FE020012C20K01B065 | FE020012C20K01N065 | |
| 3 | 28 | 65 | 4 | 2 | 1° | 4 | FE030012C28K01B065 | FE030012C28K01N065 | |
| 4 | 28 | 65 | 5 | 2 | 1° | 5 | FE040012C28K01B065 | FE040012C28K01N065 | |
| 5 | 28 | 68 | 6 | 2 | 1° | 6 | FE050012C28K01B068 | FE050012C28K01N068 | |
| 6 | 40 | 88 | 8 | 2 | 1° | 7.4 | FE060012C40K01B088 | FE060012C40K01N088 | |
| 8 | 45 | 100 | 10 | 2 | 1° | 9.6 | FE080012C45K01B100 | FE080012C45K01N100 | |
| 10 | 45 | 100 | 12 | 2 | 1° | 11.6 | FE100012C45K01B100 | FE100012C45K01N100 | |
| 12 | 45 | 100 | 14 | 2 | 1° | 13.6 | FE120012C45K01B100 | FE120012C45K01N100 | |
| 2 | 19 | 65 | 3 | 2 | 1°.30' | 3 | FE0200B2C19K01B065 | FE0200B2C19K01N065 | |
| 3 | 19 | 65 | 4 | 2 | 1°.30' | 4.3 | FE0300B2C19K01B065 | FE0300B2C19K01N065 | |
| 4 | 19 | 68 | 5 | 2 | 1°.30' | 5.6 | FE0400B2C19K01B068 | FE0400B2C19K01N068 | |
| 5 | 38 | 68 | 6 | 2 | 1°.30' | 7 | FE0500B2C19K01B068 | FE0500B2C19K01N068 | |
| 6 | 45 | 88 | 8 | 2 | 1°.30' | 8 | FE0600B2C38K01B088 | FE0600B2C38K01N088 | |
| 8 | 45 | 100 | 10 | 2 | 1°.30' | 10 | FE0800B2C38K01B100 | FE0800B2C38K01N100 | |
| 10 | 45 | 100 | 12 | 2 | 1°.30' | 12 | FE1000B2C38K01B100 | FE1000B2C38K01N100 | |
| 12 | 45 | 100 | 14 | 2 | 1°.30' | 14 | FE1200B2C38K01B100 | FE1200B2C38K01N100 |
