End Mills
Solid carbide conical end mills - Taper 2°–5°
- Diameter range
- Ø 2–12 mm
- Sizes
- 24 sizes
- Flutes (Z)
- 2
- Coating
- nACo Multilayer
- Helix angle
- Conical
- Carbide grade
- MG-10
Images

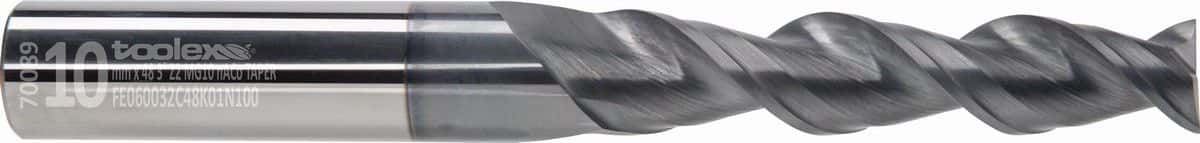

Product images
Click to enlarge
Code key
Specifications
The icons describe the family's reference size in the order of the Toolex article code.
Type
End mill
Grade
MG-10
Reference diameter
Ø 10 mm
Flutes
2 flutes
Shank type
DIN 6535 HA
Flute length
45 mm
Helix angle
Conical
Edge form
Chamfer 0.1 × 45°
Coating
nACo Multilayer
Overall length
100 mm
Sizes
Size table

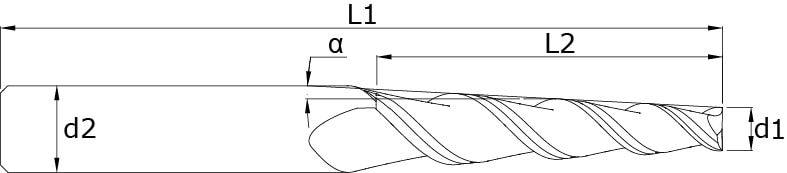

All dimensions in mm; column headings match the symbols on the technical drawing. Add any row to your quote basket by its article code.
Article code for quote
24 sizes
Download Excel| Quote | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 20 | 65 | 4 | 2 | 2° | 3.4 | FE020022C20K01B065 | FE020022C20K01N065 | |
| 3 | 28 | 65 | 5 | 2 | 2° | 5 | FE030022C28K01B065 | FE030022C28K01N065 | |
| 4 | 28 | 68 | 6 | 2 | 2° | 6 | FE040022C28K01B068 | FE040022C28K01N068 | |
| 5 | 42 | 88 | 8 | 2 | 2° | 8 | FE050022C42K01B088 | FE050022C42K01N088 | |
| 6 | 45 | 100 | 10 | 2 | 2° | 9.14 | FE060022C45K01B100 | FE060022C45K01N100 | |
| 8 | 45 | 100 | 12 | 2 | 2° | 11.14 | FE080022C45K01B100 | FE080022C45K01N100 | |
| 10 | 45 | 100 | 14 | 2 | 2° | 13.14 | FE100022C45K01B100 | FE100022C45K01N100 | |
| 12 | 45 | 100 | 16 | 2 | 2° | 15.14 | FE120022C45K01B100 | FE120022C45K01N100 | |
| 2 | 19 | 65 | 5 | 2 | 3° | 4 | FE020032C19K01B065 | FE020032C19K01N065 | |
| 3 | 28 | 68 | 6 | 2 | 3° | 6 | FE030032C28K01B068 | FE030032C28K01N068 | |
| 4 | 38 | 88 | 8 | 2 | 3° | 8 | FE040032C38K01B088 | FE040032C38K01N088 | |
| 5 | 48 | 100 | 10 | 2 | 3° | 10 | FE050032C48K01B100 | FE050032C48K01N100 | |
| 6 | 48 | 100 | 12 | 2 | 3° | 11 | FE060032C48K01B100 | FE060032C48K01N100 | |
| 8 | 48 | 100 | 14 | 2 | 3° | 13 | FE080032C48K01B100 | FE080032C48K01N100 | |
| 10 | 48 | 100 | 16 | 2 | 3° | 15 | FE100032C48K01B100 | FE100032C48K01N100 | |
| 12 | 48 | 100 | 18 | 2 | 3° | 17 | FE120032C48K01B100 | FE120032C48K01N100 | |
| 2 | 20 | 68 | 6 | 2 | 5° | 5.5 | FE020052C20K01B068 | FE020052C20K01N068 | |
| 3 | 28 | 88 | 8 | 2 | 5° | 8 | FE030052C28K01B088 | FE030052C28K01N088 | |
| 4 | 34 | 100 | 10 | 2 | 5° | 10 | FE040052C34K01B100 | FE040052C34K01N100 | |
| 5 | 40 | 100 | 12 | 2 | 5° | 12 | FE050052C40K01B100 | FE050052C40K01N100 | |
| 6 | 45 | 100 | 14 | 2 | 5° | 14 | FE060052C45K01B100 | FE060052C45K01N100 | |
| 8 | 45 | 100 | 16 | 2 | 5° | 16 | FE080052C45K01B100 | FE080052C45K01N100 | |
| 10 | 45 | 100 | 18 | 2 | 5° | 18 | FE100052C45K01B100 | FE100052C45K01N100 | |
| 12 | 45 | 100 | 20 | 2 | 5° | 20 | FE120052C45K01B100 | FE120052C45K01N100 |
