End Mills

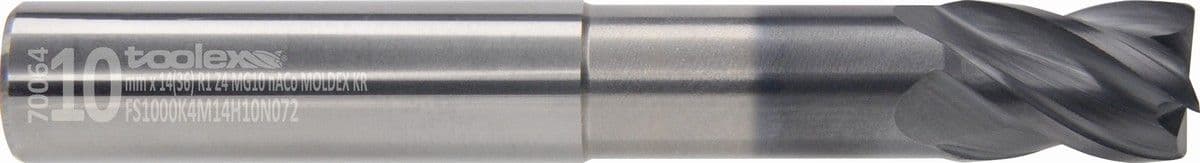

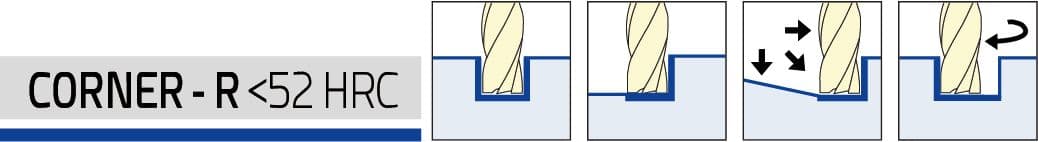

Solid carbide end mills with corner radius
- Diameter range
- Ø 3–16 mm
- Sizes
- 25 sizes
- Flutes (Z)
- 4
- Coating
- nACo Multilayer
- Helix angle
- 30°
- Standard
- Toolex corner radius
Images

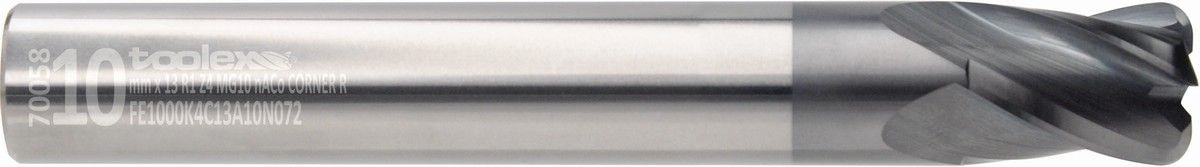

Product images
Click to enlarge
Code key
Specifications
The icons describe the family's reference size in the order of the Toolex article code.
Type
End mill
Grade
MG-10
Reference diameter
Ø 10 mm
Standard
Toolex corner radius
Flutes
4 flutes
Shank type
DIN 6535 HA
Flute length
13 mm
Helix angle
30°
Edge form
Radius (20)
Coating
nACo Multilayer
Overall length
72 mm
Sizes
Size table

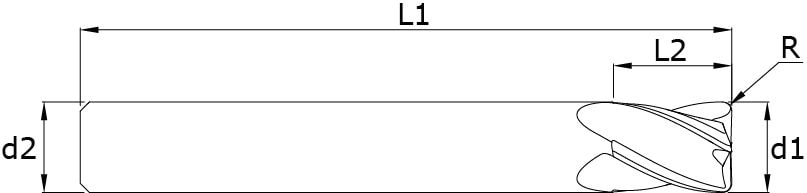

All dimensions in mm; column headings match the symbols on the technical drawing. Add any row to your quote basket by its article code.
Article code for quote
25 sizes
Download Excel| Quote | ||||||||
|---|---|---|---|---|---|---|---|---|
| 3 | 5 | 40 | 3 | 4 | 0.5 | FE0300K4C05A05B040 | FE0300K4C05A05N040 | |
| 4 | 7 | 50 | 4 | 4 | 0.5 | FE0400K4C07A05B050 | FE0400K4C07A05N050 | |
| 5 | 8 | 50 | 5 | 4 | 0.5 | FE0500K4C08A05B050 | FE0500K4C08A05N050 | |
| 6 | 8 | 57 | 6 | 4 | 0.5 | FE0600K4C08A05B057 | FE0600K4C08A05N057 | |
| 6 | 8 | 57 | 6 | 4 | 1 | FE0600K4C08A10B057 | FE0600K4C08A10N057 | |
| 8 | 11 | 63 | 8 | 4 | 0.5 | FE0800K4C11A05B063 | FE0800K4C11A05N063 | |
| 8 | 11 | 63 | 8 | 4 | 1 | FE0800K4C11A10B063 | FE0800K4C11A10N063 | |
| 8 | 11 | 63 | 8 | 4 | 1.5 | FE0800K4C11A15B063 | FE0800K4C11A15N063 | |
| 8 | 11 | 63 | 8 | 4 | 2 | FE0800K4C11A20B063 | FE0800K4C11A20N063 | |
| 10 | 13 | 72 | 10 | 4 | 0.5 | FE1000K4C13A05B072 | FE1000K4C13A05N072 | |
| 10 | 13 | 72 | 10 | 4 | 1 | FE1000K4C13A10B072 | FE1000K4C13A10N072 | |
| 10 | 13 | 72 | 10 | 4 | 1.5 | FE1000K4C13A15B072 | FE1000K4C13A15N072 | |
| 10 | 13 | 72 | 10 | 4 | 2 | FE1000K4C13A20B072 | FE1000K4C13A20N072 | |
| 12 | 16 | 83 | 12 | 4 | 0.5 | FE1200K4C16A05B083 | FE1200K4C16A05N083 | |
| 12 | 16 | 83 | 12 | 4 | 1 | FE1200K4C16A10B083 | FE1200K4C16A10N083 | |
| 12 | 16 | 83 | 12 | 4 | 1.5 | FE1200K4C16A15B083 | FE1200K4C16A15N083 | |
| 12 | 16 | 83 | 12 | 4 | 2 | FE1200K4C16A20B083 | FE1200K4C16A20N083 | |
| 14 | 16 | 83 | 12 | 4 | 0.5 | FE1400K4C16A05B083 | FE1400K4C16A05N083 | |
| 14 | 16 | 83 | 12 | 4 | 1 | FE1400K4C16A10B083 | FE1400K4C16A10N083 | |
| 14 | 16 | 83 | 12 | 4 | 1.5 | FE1400K4C16A15B083 | FE1400K4C16A15N083 | |
| 14 | 16 | 83 | 12 | 4 | 2 | FE1400K4C16A20B083 | FE1400K4C16A20N083 | |
| 16 | 19 | 92 | 16 | 4 | 0.5 | FE1600K4C19A05B092 | FE1600K4C19A05N092 | |
| 16 | 19 | 92 | 16 | 4 | 1 | FE1600K4C19A10B092 | FE1600K4C19A10N092 | |
| 16 | 19 | 92 | 16 | 4 | 1.5 | FE1600K4C19A15B092 | FE1600K4C19A15N092 | |
| 16 | 19 | 92 | 16 | 4 | 2 | FE1600K4C19A20B092 | FE1600K4C19A20N092 |
