End Mills
Solid carbide end mills with corner radius - Almold Long
- Diameter range
- Ø 4–16 mm
- Sizes
- 24 sizes
- Flutes (Z)
- 2
- Coating
- DRYCUT
- Helix angle
- 40°
- Standard
- Toolex corner radius
Images

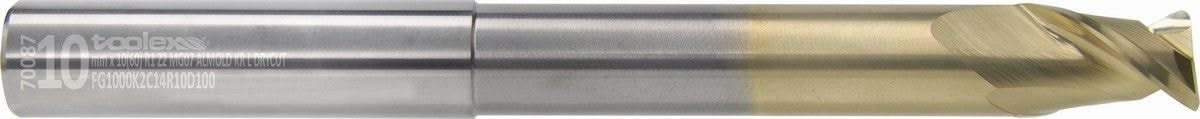

Product images
Click to enlarge
Code key
Specifications
The icons describe the family's reference size in the order of the Toolex article code.
Type
End mill
Grade
NG-07
Reference diameter
Ø 10 mm
Standard
Toolex corner radius
Flutes
2 flutes
Shank type
Toolex (with neck)
Flute length
14 mm
Helix angle
40°
Edge form
Radius (20)
Coating
DRYCUT
Overall length
100 mm
Sizes
Size table

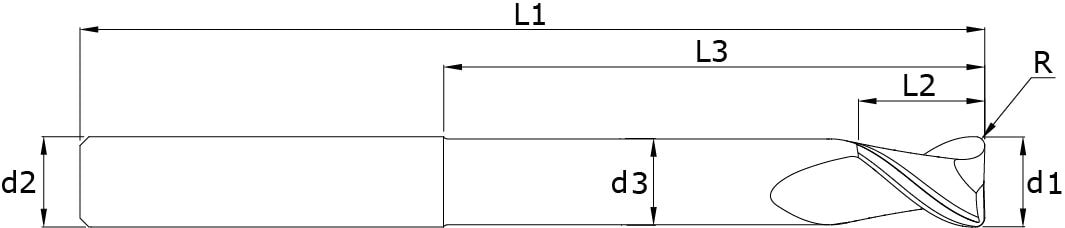

All dimensions in mm; column headings match the symbols on the technical drawing. Add any row to your quote basket by its article code.
Article code for quote
24 sizes
Download Excel| Quote | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 6 | 3.8 | 32 | 65 | 4 | 2 | 0.5 | FG0400K2M06R05D065 | FG0400K2C06R05D065 | |
| 5 | 7 | 4.8 | 40 | 80 | 5 | 2 | 0.5 | FG0500K2M07R05D080 | FG0500K2C07R05D080 | |
| 6 | 8 | 5.7 | 40 | 80 | 6 | 2 | 0.5 | FG0600K2M08R05D080 | FG0600K2C08R05D080 | |
| 6 | 8 | 5.7 | 40 | 80 | 6 | 2 | 1 | FG0600K2M08R10D080 | FG0600K2C08R10D080 | |
| 8 | 10 | 7.6 | 44 | 88 | 8 | 2 | 0.5 | FG0800K2M10R05D088 | FG0800K2C10R05D088 | |
| 8 | 10 | 7.6 | 44 | 88 | 8 | 2 | 1 | FG0800K2M10R10D088 | FG0800K2C10R10D088 | |
| 8 | 10 | 7.6 | 44 | 88 | 8 | 2 | 1.5 | FG0800K2M10R15D088 | FG0800K2C10R15D088 | |
| 8 | 10 | 7.6 | 44 | 88 | 8 | 2 | 2 | FG0800K2M10R20D088 | FG0800K2C10R20D088 | |
| 10 | 14 | 9.5 | 60 | 100 | 10 | 2 | 0.5 | FG1000K2M14R05D100 | FG1000K2C14R05D100 | |
| 10 | 14 | 9.5 | 60 | 100 | 10 | 2 | 1 | FG1000K2M14R10D100 | FG1000K2C14R10D100 | |
| 10 | 14 | 9.5 | 60 | 100 | 10 | 2 | 1.5 | FG1000K2M14R15D100 | FG1000K2C14R15D100 | |
| 10 | 14 | 9.5 | 60 | 100 | 10 | 2 | 2 | FG1000K2M14R20D100 | FG1000K2C14R20D100 | |
| 12 | 16 | 11.5 | 70 | 110 | 12 | 2 | 0.5 | FG1200K2M16R05D110 | FG1200K2C16R05D110 | |
| 12 | 16 | 11.5 | 70 | 110 | 12 | 2 | 1 | FG1200K2M16R10D110 | FG1200K2C16R10D110 | |
| 12 | 16 | 11.5 | 70 | 110 | 12 | 2 | 1.5 | FG1200K2M16R15D110 | FG1200K2C16R15D110 | |
| 12 | 16 | 11.5 | 70 | 110 | 12 | 2 | 2 | FG1200K2M16R20D110 | FG1200K2C16R20D110 | |
| 14 | 18 | 13.5 | 70 | 110 | 14 | 2 | 0.5 | FG1400K2M18R05D110 | FG1400K2C18R05D110 | |
| 14 | 18 | 13.5 | 70 | 110 | 14 | 2 | 1 | FG1400K2M18R10D110 | FG1400K2C18R10D110 | |
| 14 | 18 | 13.5 | 70 | 110 | 14 | 2 | 1.5 | FG1400K2M18R15D110 | FG1400K2C18R15D110 | |
| 14 | 18 | 13.5 | 70 | 110 | 14 | 2 | 2 | FG1400K2M18R20D110 | FG1400K2C18R20D110 | |
| 16 | 20 | 15.5 | 70 | 110 | 16 | 2 | 0.5 | FG1600K2M20R05D110 | FG1600K2C20R05D110 | |
| 16 | 20 | 15.5 | 70 | 110 | 16 | 2 | 1 | FG1600K2M20R10D110 | FG1600K2C20R10D110 | |
| 16 | 20 | 15.5 | 70 | 110 | 16 | 2 | 2 | FG1600K2M20R20D110 | FG1600K2C20R20D110 | |
| 16 | 20 | 15.5 | 70 | 110 | 16 | 2 | 3 | FG1600K2M20R30D110 | FG1600K2C20R30D110 |
