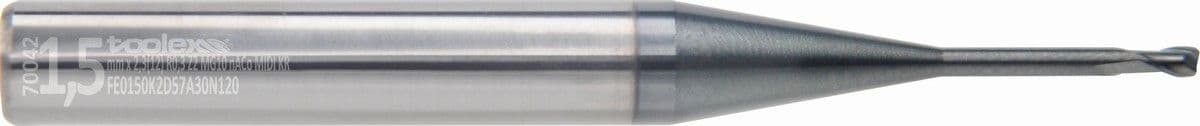

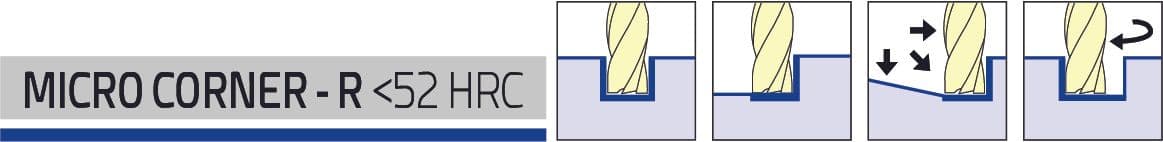

Solid carbide end mills with corner radius - Micro
- Diameter range
- Ø 0.5–2 mm
- Sizes
- 33 sizes
- Flutes (Z)
- 2 / 4
- Coating
- nACo Multilayer
- Helix angle
- 30°
- Standard
- Toolex corner radius
Images
Product images
Click to enlarge
Code key
Specifications
The icons describe the family's reference size in the order of the Toolex article code.
Type
End mill
Grade
MG-10
Reference diameter
Ø 1 mm
Standard
Toolex corner radius
Flutes
2 flutes
Shank type
DIN 6535 HEK
Flute length
20 mm
Helix angle
30°
Edge form
Corner radius (20)
Coating
nACo Multilayer
Overall length
40 mm
Sizes
Size table

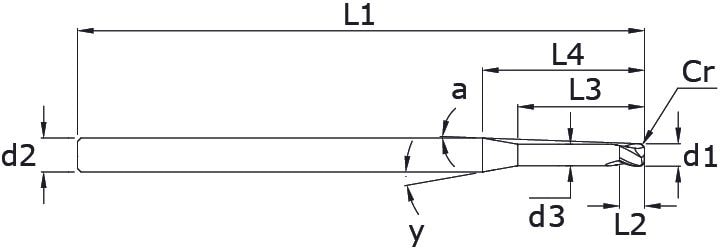

All dimensions in mm; column headings match the symbols on the technical drawing. Add any row to your quote basket by its article code.
33 sizes
Download Excel| Quote | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.5 | 0.8 | 1 | 11.4 | 0.48 | 40 | 3 | 2 | 7,0° | 6,17° | 0.1 | FE0050K2K40A10N010 | |
| 0.5 | 0.8 | 2 | 9.3 | 0.48 | 40 | 3 | 2 | 10,0° | 7,63° | 0.1 | FE0050K2K40A10N020 | |
| 0.5 | 0.8 | 4 | 11.3 | 0.48 | 40 | 3 | 2 | 10,0° | 6,30° | 0.1 | FE0050K2K40A10N040 | |
| 0.5 | 0.8 | 6 | 13.3 | 0.48 | 40 | 3 | 2 | 10,0° | 5,36° | 0.1 | FE0050K2K40A10N060 | |
| 0.6 | 0.9 | 1.2 | 11.3 | 0.57 | 40 | 3 | 2 | 7,0° | 6,10° | 0.1 | FE0060K2K40A10N012 | |
| 0.6 | 0.9 | 2 | 9.1 | 0.57 | 40 | 3 | 2 | 10,0° | 7,52° | 0.1 | FE0060K2K40A10N020 | |
| 0.6 | 0.9 | 4 | 11.1 | 0.57 | 40 | 3 | 2 | 10,0° | 6,18° | 0.1 | FE0060K2K40A10N040 | |
| 0.6 | 0.9 | 8 | 15.1 | 0.57 | 40 | 3 | 2 | 10,0° | 4,55° | 0.1 | FE0060K2K40A10N080 | |
| 0.7 | 1.1 | 1.4 | 11.1 | 0.67 | 40 | 3 | 2 | 7,0° | 5,90° | 0.1 | FE0070K2K40A10N014 | |
| 0.7 | 1.1 | 2.5 | 9.4 | 0.67 | 40 | 3 | 2 | 10,0° | 6,99° | 0.1 | FE0070K2K40A10N025 | |
| 0.7 | 1.1 | 5 | 11.9 | 0.67 | 40 | 3 | 2 | 10,0° | 5,54° | 0.1 | FE0070K2K40A10N050 | |
| 0.7 | 1.1 | 8 | 14.9 | 0.67 | 40 | 3 | 2 | 10,0° | 4,43° | 0.1 | FE0070K2K40A10N080 | |
| 0.8 | 1.2 | 2 | 8.6 | 0.76 | 40 | 3 | 2 | 10,0° | 7,61° | 0.15 | FE0080K2K40A15N020 | |
| 0.8 | 1.2 | 3 | 9.6 | 0.76 | 40 | 3 | 2 | 10,0° | 6,51° | 0.15 | FE0080K2K40A15N030 | |
| 0.8 | 1.2 | 6 | 12.6 | 0.76 | 40 | 3 | 2 | 10,0° | 4,98° | 0.15 | FE0080K2K40A15N060 | |
| 0.8 | 1.2 | 10 | 16.6 | 0.76 | 50 | 3 | 2 | 10,0° | 3,44° | 0.15 | FE0080K2K50A15N100 | |
| 1 | 1.5 | 2 | 8.2 | 0.95 | 40 | 3 | 2 | 10,0° | 6,98° | 0.2 | FE0100K2K40A20N020 | |
| 1 | 1.5 | 4 | 10.2 | 0.95 | 40 | 3 | 2 | 10,0° | 5,62° | 0.2 | FE0100K2K40A20N040 | |
| 1 | 1.5 | 8 | 14.2 | 0.95 | 40 | 3 | 2 | 10,0° | 4,40° | 0.2 | FE0100K2K40A20N080 | |
| 1 | 1.5 | 12 | 18.2 | 0.95 | 50 | 3 | 2 | 10,0° | 3,16° | 0.2 | FE0100K2K50A20N120 | |
| 1 | 1.5 | 16 | 22.2 | 0.95 | 50 | 3 | 2 | 10,0° | 2,59° | 0.2 | FE0100K2K50A20N160 | |
| 1 | 1.5 | 20 | 26.2 | 0.95 | 50 | 3 | 2 | 10,0° | 2,19° | 0.2 | FE0100K2K50A20N200 | |
| 1.2 | 1.8 | 2 | 7.7 | 1.14 | 40 | 3 | 2 | 10,0° | 6,67° | 0.25 | FE0120K2K40A25N020 | |
| 1.2 | 1.8 | 4 | 9.7 | 1.14 | 40 | 3 | 2 | 10,0° | 5,31° | 0.25 | FE0120K2K40A25N040 | |
| 1.5 | 2.3 | 4 | 9 | 1.43 | 40 | 3 | 2 | 10,0° | 4,76° | 0.3 | FE0150K2K40A30N040 | |
| 1.5 | 2.3 | 8 | 13 | 1.43 | 40 | 3 | 2 | 10,0° | 3,30° | 0.3 | FE0150K2K40A30N080 | |
| 1.5 | 2.3 | 12 | 17 | 1.43 | 50 | 3 | 2 | 10,0° | 2,52° | 0.3 | FE0150K2K50A30N120 | |
| 1.5 | 2.3 | 20 | 25 | 1.43 | 50 | 3 | 2 | 10,0° | 1,72° | 0.3 | FE0150K2K50A30N200 | |
| 2 | 3 | 4 | 7.8 | 1.9 | 40 | 3 | 4 | 10,0° | 3,65° | 0.5 | FE0200K4K40A50N040 | |
| 2 | 3 | 8 | 11.8 | 1.9 | 40 | 3 | 4 | 10,0° | 2,42° | 0.5 | FE0200K4K40A50N080 | |
| 2 | 3 | 12 | 15.8 | 1.9 | 50 | 3 | 4 | 10,0° | 1,81° | 0.5 | FE0200K4K50A50N120 | |
| 2 | 4 | 16 | 19.8 | 1.9 | 50 | 3 | 4 | 10,0° | 1,45° | 0.5 | FE0200K4K50A50N160 | |
| 2 | 4 | 20 | 23.8 | 1.9 | 50 | 3 | 4 | 10,0° | 1,21° | 0.5 | FE0200K4K50A50N200 |
