Taps
Solid carbide taps - Hard
- Diameter range
- M4–M12
- Sizes
- 6 sizes
- Flutes (Z)
- 3
- Coating
- nACo Multilayer
- Helix angle
- 0°
- Carbide grade
- NG-12
Images

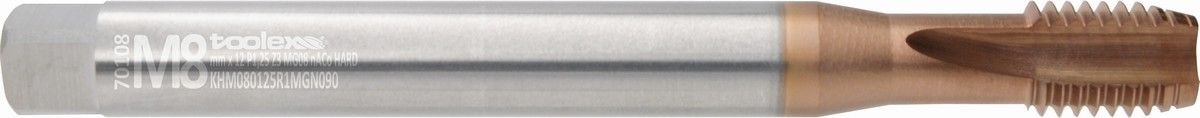

Product images
Click to enlarge
Code key
Specifications
The icons describe the family's reference size in the order of the Toolex article code.
Type
Tap
Grade
NG-12
Reference diameter
Ø 10 mm

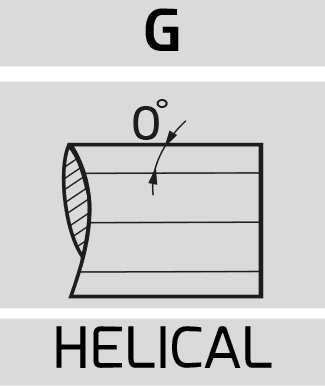

Helix angle
0°
Machine
Machine tap
Coating
nACo Multilayer
Overall length
100 mm
Sizes
Size table

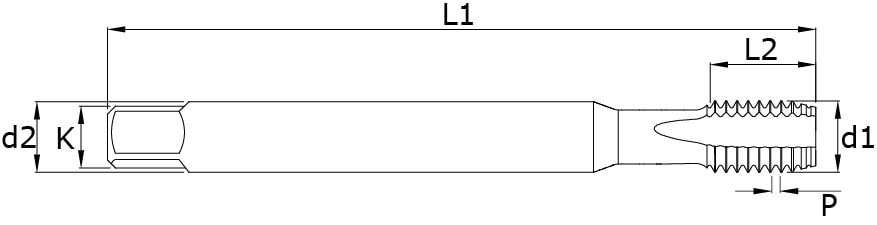

All dimensions in mm; column headings match the symbols on the technical drawing. Add any row to your quote basket by its article code.
6 sizes
Download Excel| Quote | ||||||||
|---|---|---|---|---|---|---|---|---|
| M4 | 0.7 | 63 | 7 | 4.5 | 3.4 | 3 | KHM040070R1MGN063 | |
| M5 | 0.8 | 70 | 9 | 6 | 4.9 | 3 | KHM050080R1MGN070 | |
| M6 | 1 | 80 | 10 | 6 | 4.9 | 3 | KHM060100R1MGN080 | |
| M8 | 1.25 | 90 | 12 | 8 | 6.2 | 3 | KHM080125R1MGN090 | |
| M10 | 1.5 | 100 | 14 | 10 | 8 | 3 | KHM100150R1MGN100 | |
| M12 | 1.75 | 110 | 16 | 12 | 9 | 3 | KHM120175R1MGN110 |
