Bohrer
VHM - 3D-Bohrer
- Durchmesserbereich
- Ø 3–20 mm
- Abmessungen
- 33 Abmessungen
- Schneidenzahl (Z)
- 2
- Beschichtung
- nACo Multilayer
- Drallwinkel
- 30°
- Norm
- DIN 6537K 3D
Bilder

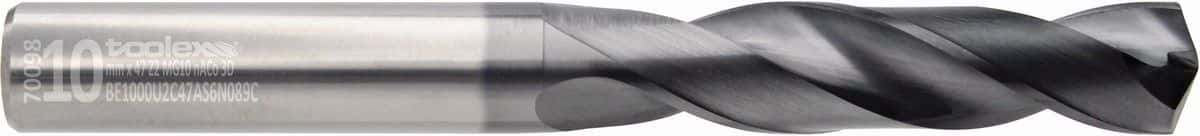

Produktbilder
Zum Vergrößern klicken
Code-Schlüssel
Kenndaten
Die Symbole beschreiben die Referenzabmessung der Produktfamilie in der Reihenfolge der Toolex-Artikelnummer.
Typ
Bohrer
Sorte
MG-10
Referenzdurchmesser
Ø 10 mm
Norm
DIN 6537K 3D
Schneidenzahl
2 Schneiden
Schaftform
DIN 6535 HA
Schneidenlänge
47 mm
Drallwinkel
30°
Eckenform
Spitzenform S6 (140°)
Beschichtung
nACo Multilayer
Gesamtlänge
89 mm
Kühlkanal
Innenkühlung (C)
Abmessungen
Maßtabelle

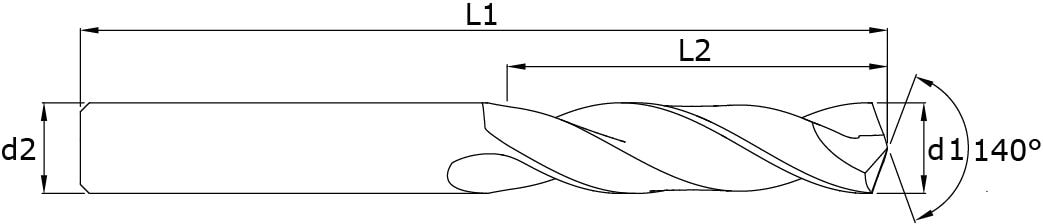

Alle Maße in mm; die Spaltenköpfe entsprechen den Symbolen der technischen Zeichnung. Jede Zeile lässt sich mit ihrer Artikelnummer in den Angebotskorb legen.
Artikelnummer für das Angebot
33 Abmessungen
Excel herunterladen| Angebot | |||||||
|---|---|---|---|---|---|---|---|
| 3 | 20 | 62 | 6 | 2 | BE0300U2C20AS6N062 | – | |
| 3.3 | 20 | 62 | 6 | 2 | BE0330U2C20AS6N062 | – | |
| 3.5 | 20 | 62 | 6 | 2 | BE0350U2C20AS6N062 | – | |
| 4 | 24 | 66 | 6 | 2 | BE0400U2C24AS6N066 | – | |
| 4.2 | 24 | 66 | 6 | 2 | BE0420U2C24AS6N066 | – | |
| 4.5 | 24 | 66 | 6 | 2 | BE0450U2C24AS6N066 | – | |
| 5 | 28 | 66 | 6 | 2 | BE0500U2C28AS6N066 | – | |
| 6 | 28 | 66 | 6 | 2 | BE0600U2C28AS6N066 | BE0600U2C28AS6N066C | |
| 6.5 | 34 | 79 | 8 | 2 | BE0650U2C34AS6N079 | BE0650U2C34AS6N079C | |
| 6.8 | 34 | 79 | 8 | 2 | BE0680U2C34AS6N079 | BE0680U2C34AS6N079C | |
| 7 | 34 | 79 | 8 | 2 | BE0700U2C34AS6N079 | BE0700U2C34AS6N079C | |
| 7.5 | 41 | 79 | 8 | 2 | BE0750U2C41AS6N079 | BE0750U2C41AS6N079C | |
| 8 | 41 | 79 | 8 | 2 | BE0800U2C41AS6N079 | BE0800U2C41AS6N079C | |
| 8.5 | 47 | 79 | 10 | 2 | BE0850U2C47AS6N079 | BE0850U2C47AS6N079C | |
| 9 | 47 | 89 | 10 | 2 | BE0900U2C47AS6N089 | BE0900U2C47AS6N089C | |
| 9.5 | 47 | 89 | 10 | 2 | BE0950U2C47AS6N089 | BE0950U2C47AS6N089C | |
| 10 | 47 | 89 | 10 | 2 | BE1000U2C47AS6N089 | BE1000U2C47AS6N089C | |
| 10.2 | 55 | 102 | 10 | 2 | BE1020U2C55AS6N102 | BE1020U2C55AS6N102C | |
| 10.5 | 55 | 102 | 12 | 2 | BE1050U2C55AS6N102 | BE1050U2C55AS6N102C | |
| 11 | 55 | 102 | 12 | 2 | BE1100U2C55AS6N102 | BE1100U2C55AS6N102C | |
| 11.5 | 55 | 102 | 12 | 2 | BE1150U2C55AS6N102 | BE1150U2C55AS6N102C | |
| 12 | 55 | 102 | 12 | 2 | BE1200U2C55AS6N102 | BE1200U2C55AS6N102C | |
| 12.5 | 60 | 107 | 14 | 2 | BE1250U2C60AS6N107 | BE1250U2C60AS6N107C | |
| 13 | 60 | 107 | 14 | 2 | BE1300U2C60AS6N107 | BE1300U2C60AS6N107C | |
| 13.5 | 60 | 107 | 14 | 2 | BE1350U2C60AS6N107 | BE1350U2C60AS6N107C | |
| 14 | 60 | 107 | 14 | 2 | BE1400U2C60AS6N107 | BE1400U2C60AS6N107C | |
| 14.5 | 65 | 115 | 16 | 2 | BE1450U2C65AS6N115 | BE1450U2C65AS6N115C | |
| 15 | 65 | 115 | 16 | 2 | BE1500U2C65AS6N115 | BE1500U2C65AS6N115C | |
| 16 | 65 | 115 | 16 | 2 | BE1600U2C65AS6N115 | BE1600U2C65AS6N115C | |
| 17 | 73 | 123 | 18 | 2 | BE1700U2C73AS6N123 | BE1700U2C73AS6N123C | |
| 18 | 73 | 123 | 18 | 2 | BE1800U2C73AS6N123 | BE1800U2C73AS6N123C | |
| 19 | 79 | 131 | 20 | 2 | BE1900U2C79AS6N131 | BE1900U2C79AS6N131C | |
| 20 | 79 | 132 | 20 | 2 | BE2000U2C79AS6N132 | BE2000U2C79AS6N132C |
