Bohrer
VHM - 7D-Bohrer
- Durchmesserbereich
- Ø 5–18 mm
- Abmessungen
- 26 Abmessungen
- Schneidenzahl (Z)
- 2
- Beschichtung
- nACo Multilayer
- Drallwinkel
- 30°
- Norm
- DIN 6537K 7D
Bilder
Produktbilder
Zum Vergrößern klicken
Code-Schlüssel
Kenndaten
Die Symbole beschreiben die Referenzabmessung der Produktfamilie in der Reihenfolge der Toolex-Artikelnummer.
Typ
Bohrer
Sorte
MG-10
Referenzdurchmesser
Ø 10 mm
Norm
DIN 6537K 7D
Schneidenzahl
2 Schneiden
Schaftform
DIN 6535 HA
Schneidenlänge
95 mm
Drallwinkel
30°
Eckenform
Spitzenform S6 (140°)
Beschichtung
nACo Multilayer
Gesamtlänge
139 mm
Kühlkanal
Innenkühlung (C)
Abmessungen
Maßtabelle

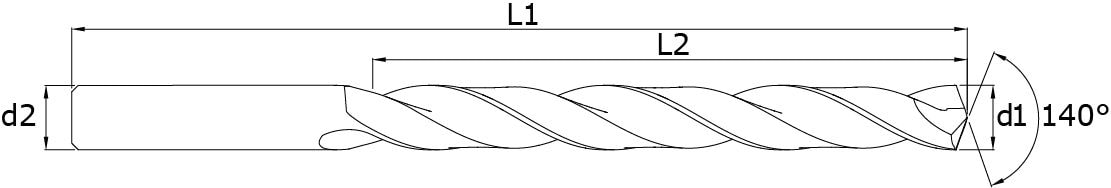

Alle Maße in mm; die Spaltenköpfe entsprechen den Symbolen der technischen Zeichnung. Jede Zeile lässt sich mit ihrer Artikelnummer in den Angebotskorb legen.
Artikelnummer für das Angebot
26 Abmessungen
Excel herunterladen| Angebot | |||||||
|---|---|---|---|---|---|---|---|
| 5 | 50 | 90 | 6 | 2 | BE0500Y2C50AS6N090 | – | |
| 5.5 | 57 | 97 | 6 | 2 | BE0550Y2C57AS6N097 | – | |
| 6 | 57 | 97 | 6 | 2 | BE0600Y2C57AS6N097 | BE0600Y2C57AS6N097C | |
| 6.5 | 58 | 106 | 8 | 2 | BE0650Y2C58AS6N106 | BE0650Y2C58AS6N106C | |
| 6.8 | 58 | 106 | 8 | 2 | BE0680Y2C58AS6N106 | BE0680Y2C58AS6N106C | |
| 7 | 76 | 116 | 8 | 2 | BE0700Y2C76AS6N116 | BE0700Y2C76AS6N116C | |
| 7.5 | 76 | 116 | 8 | 2 | BE0750Y2C76AS6N116 | BE0750Y2C76AS6N116C | |
| 8 | 76 | 116 | 8 | 2 | BE0800Y2C76AS6N116 | BE0800Y2C76AS6N116C | |
| 8.5 | 87 | 131 | 10 | 2 | BE0850Y2C87AS6N131 | BE0850Y2C87AS6N131C | |
| 9 | 87 | 131 | 10 | 2 | BE0900Y2C87AS6N131 | BE0900Y2C87AS6N131C | |
| 9.5 | 95 | 139 | 10 | 2 | BE0950Y2C95AS6N139 | BE0950Y2C95AS6N139C | |
| 10 | 95 | 139 | 10 | 2 | BE1000Y2C95AS6N139 | BE1000Y2C95AS6N139C | |
| 10.2 | 95 | 139 | 12 | 2 | BE1020Y2C95AS6N139 | BE1020Y2C95AS6N139C | |
| 10.5 | 106 | 155 | 12 | 2 | BE1050Y2C06AS6N155 | BE1050Y2C06AS6N155C | |
| 11 | 106 | 155 | 12 | 2 | BE1100Y2C06AS6N155 | BE1100Y2C06AS6N155C | |
| 11.5 | 114 | 163 | 12 | 2 | BE1150Y2C14AS6N163 | BE1150Y2C14AS6N163C | |
| 12 | 114 | 163 | 12 | 2 | BE1200Y2C14AS6N163 | BE1200Y2C14AS6N163C | |
| 12.5 | 120 | 170 | 14 | 2 | BE1250Y2C20AS6N170 | BE1250Y2C20AS6N170C | |
| 13 | 120 | 170 | 14 | 2 | BE1300Y2C20AS6N170 | BE1300Y2C20AS6N170C | |
| 13.5 | 120 | 170 | 14 | 2 | BE1350Y2C20AS6N170 | BE1350Y2C20AS6N170C | |
| 14 | 120 | 170 | 14 | 2 | BE1400Y2C20AS6N170 | BE1400Y2C20AS6N170C | |
| 14.5 | 132 | 182 | 16 | 2 | BE1450Y2C32AS6N182 | BE1450Y2C32AS6N182C | |
| 15 | 132 | 182 | 16 | 2 | BE1500Y2C32AS6N182 | BE1500Y2C32AS6N182C | |
| 16 | 132 | 182 | 16 | 2 | BE1600Y2C32AS6N182 | BE1600Y2C32AS6N182C | |
| 17 | 146 | 195 | 18 | 2 | BE1700Y2C46AS6N195 | BE1700Y2C46AS6N195C | |
| 18 | 146 | 195 | 18 | 2 | BE1800Y2C46AS6N195 | BE1800Y2C46AS6N195C |
