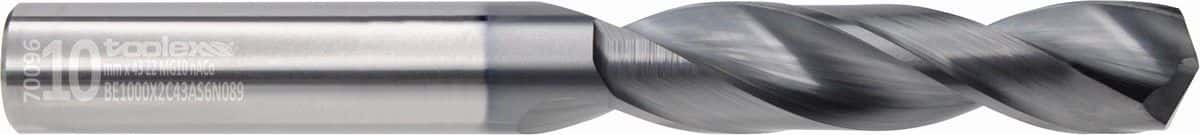

Product images

Click to enlarge

Code key

Specifications

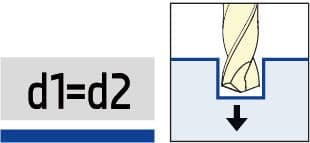

The icons describe the family's reference size in the order of the Toolex article code.

Type
Drill
Grade
MG-10
Reference diameter
Ø 10 mm
Standard
DIN 6539
Flutes
2 flutes
Shank type
DIN 6535 HA
Flute length
43 mm
Helix angle
30°
Edge form
Point form S6 (140°)
Coating
nACo Multilayer
Overall length
89 mm

Sizes

Size table

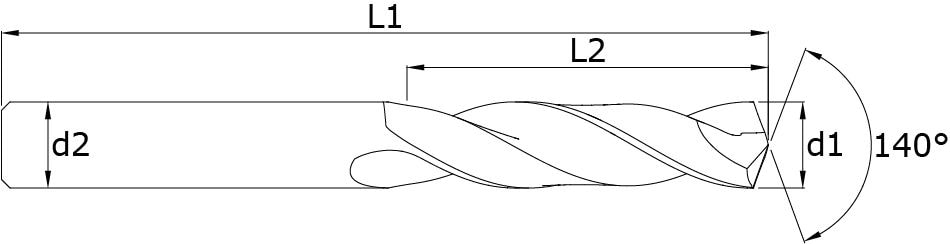

All dimensions in mm; column headings match the symbols on the technical drawing. Add any row to your quote basket by its article code.

Article code for quote

33 sizes

Download Excel

Solid carbide drills – dimensions and article codes

2	12	40	2	2	BE0200X2C12AS6B040	BE0200X2C12AS6N040
2.5	14	43	2.5	2	BE0250X2C14AS6B043	BE0250X2C14AS6N043
3	16	46	3	2	BE0300X2C16AS6B046	BE0300X2C16AS6N046
3.3	16	46	3.3	2	BE0330X2C16AS6B046	BE0330X2C16AS6N046
3.5	20	52	3.5	2	BE0350X2C20AS6B052	BE0350X2C20AS6N052
4	22	55	4	2	BE0400X2C22AS6B055	BE0400X2C22AS6N055
4.2	22	55	4.2	2	BE0420X2C22AS6B055	BE0420X2C22AS6N055
4.5	24	58	4.5	2	BE0450X2C24AS6B058	BE0450X2C24AS6N058
5	26	62	5	2	BE0500X2C26AS6B062	BE0500X2C26AS6N062
5.5	28	66	5.5	2	BE0550X2C28AS6B066	BE0550X2C28AS6N066
6	28	66	6	2	BE0600X2C28AS6B066	BE0600X2C28AS6N066
6.5	31	70	6.5	2	BE0650X2C31AS6B070	BE0650X2C31AS6N070
6.8	31	70	6.8	2	BE0680X2C31AS6B070	BE0680X2C31AS6N070
7	34	74	7	2	BE0700X2C34AS6B074	BE0700X2C34AS6N074
7.5	34	74	7.5	2	BE0750X2C34AS6B074	BE0750X2C34AS6N074
8	37	79	8	2	BE0800X2C37AS6B079	BE0800X2C37AS6N079
8.5	37	79	8.5	2	BE0850X2C37AS6B079	BE0850X2C37AS6N079
9	40	84	9	2	BE0900X2C40AS6B084	BE0900X2C40AS6N084
9.5	40	84	9.5	2	BE0950X2C40AS6B084	BE0950X2C40AS6N084
10	43	89	10	2	BE1000X2C43AS6B089	BE1000X2C43AS6N089
10.2	43	89	10.2	2	BE1020X2C43AS6B089	BE1020X2C43AS6N089
10.5	43	89	10.5	2	BE1050X2C43AS6B089	BE1050X2C43AS6N089
11	47	95	11	2	BE1100X2C47AS6B095	BE1100X2C47AS6N095
11.5	47	95	11.5	2	BE1150X2C47AS6B095	BE1150X2C47AS6N095
12	51	102	12	2	BE1200X2C51AS6B102	BE1200X2C51AS6N102
12.5	51	102	12.5	2	BE1250X2C51AS6B102	BE1250X2C51AS6N102
13	51	102	13	2	BE1300X2C51AS6B102	BE1300X2C51AS6N102
13.5	51	102	13.5	2	BE1350X2C51AS6B102	BE1350X2C51AS6N102
14	54	107	14	2	BE1400X2C54AS6B107	BE1400X2C54AS6N107
15	56	111	15	2	BE1500X2C56AS6B111	BE1500X2C56AS6N111
16	58	115	16	2	BE1600X2C58AS6B115	BE1600X2C58AS6N115
18	62	123	18	2	BE1800X2C62AS6B123	BE1800X2C62AS6N123
20	66	131	20	2	BE2000X2C66AS6B131	BE2000X2C66AS6N131
