Drills

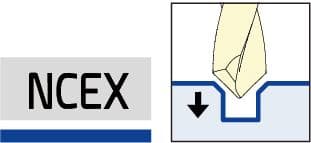

Solid carbide NCEX drills
- Diameter range
- Ø 4–20 mm
- Sizes
- 16 sizes
- Flutes (Z)
- 1
- Coating
- nACo Multilayer
- Helix angle
- 20°
- Standard
- Toolex drill standard
Images
Product images
Click to enlarge
Code key
Specifications
The icons describe the family's reference size in the order of the Toolex article code.
Type
NC drill
Grade
NG-10
Reference diameter
Ø 10 mm
Standard
Toolex drill standard
Flutes
1 flute
Shank type
DIN 6535 HA
Flute length
16 mm
Helix angle
20°
Edge form
Edge angle 90°
Coating
nACo Multilayer
Overall length
72 mm
Sizes
Size table
All dimensions in mm; column headings match the symbols on the technical drawing. Add any row to your quote basket by its article code.
Article code for quote
16 sizes
Download Excel| Quote | ||||||||
|---|---|---|---|---|---|---|---|---|
| 4 | 6 | 50 | 4 | 1 | 90° | NS0400T1C06F90B050 | NS0400T1C06F90N050 | |
| 5 | 8 | 50 | 5 | 1 | 90° | NS0500T1C08F90B050 | NS0500T1C08F90N050 | |
| 6 | 10 | 57 | 6 | 1 | 90° | NS0600T1C10F90B057 | NS0600T1C10F90N057 | |
| 8 | 12 | 63 | 8 | 1 | 90° | NS0800T1C12F90B063 | NS0800T1C12F90N063 | |
| 10 | 16 | 72 | 10 | 1 | 90° | NS1000T1C16F90B072 | NS1000T1C16F90N072 | |
| 12 | 18 | 83 | 12 | 1 | 90° | NS1200T1C18F90B083 | NS1200T1C18F90N083 | |
| 16 | 20 | 92 | 16 | 1 | 90° | NS1600T1C20F90B092 | NS1600T1C20F90N092 | |
| 20 | 22 | 104 | 20 | 1 | 90° | NS2000T1C22F90B104 | NS2000T1C22F90N104 | |
| 4 | 6 | 50 | 4 | 1 | 120° | NS0400T1C06F12B050 | NS0400T1C06F12N050 | |
| 5 | 8 | 50 | 5 | 1 | 120° | NS0500T1C08F12B050 | NS0500T1C08F12N050 | |
| 6 | 10 | 57 | 6 | 1 | 120° | NS0600T1C10F12B057 | NS0600T1C10F12N057 | |
| 8 | 12 | 63 | 8 | 1 | 120° | NS0800T1C12F12B063 | NS0800T1C12F12N063 | |
| 10 | 16 | 72 | 10 | 1 | 120° | NS1000T1C16F12B072 | NS1000T1C16F12N072 | |
| 12 | 18 | 83 | 12 | 1 | 120° | NS1200T1C18F12B083 | NS1200T1C18F12N083 | |
| 16 | 20 | 92 | 16 | 1 | 120° | NS1600T1C20F12B092 | NS1600T1C20F12N092 | |
| 20 | 22 | 104 | 20 | 1 | 120° | NS2000T1C22F12B104 | NS2000T1C22F12N104 |
