Product images

Click to enlarge

Code key

Specifications

The icons describe the family's reference size in the order of the Toolex article code.

Type
Drill
Grade
MG-10

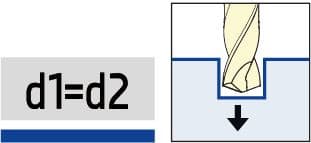

Reference diameter
Ø 10 mm
Standard
DIN 338
Flutes
2 flutes
Shank type
DIN 6535 HA
Flute length
87 mm
Helix angle
30°

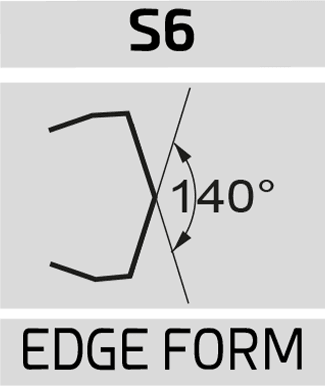

Edge form
Point form S6 (140°)
Coating
nACo Multilayer

Sizes

Size table

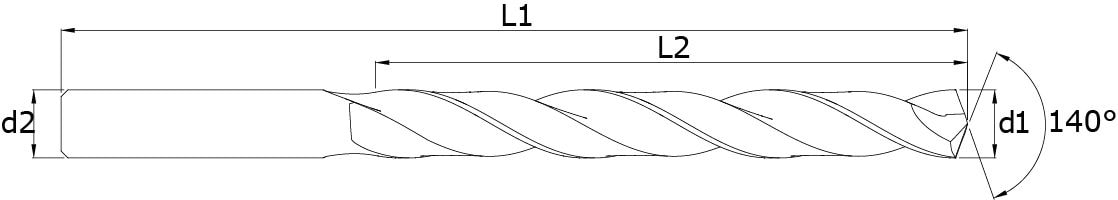

All dimensions in mm; column headings match the symbols on the technical drawing. Add any row to your quote basket by its article code.

Article code for quote

33 sizes

Download Excel

Solid carbide drills - Long – dimensions and article codes

2	24	49	2	2	BE0200Z2C24AS6B049	BE0200Z2C24AS6N049
2.5	30	57	2.5	2	BE0250Z2C30AS6B057	BE0250Z2C30AS6N057
3	33	61	3	2	BE0300Z2C33AS6B061	BE0300Z2C33AS6N061
3.3	33	61	3.3	2	BE0330Z2C33AS6B061	BE0330Z2C33AS6N061
3.5	39	70	3.5	2	BE0350Z2C39AS6B070	BE0350Z2C39AS6N070
4	43	75	4	2	BE0400Z2C43AS6B075	BE0400Z2C43AS6N075
4.2	43	75	4.2	2	BE0420Z2C43AS6B075	BE0420Z2C43AS6N075
4.5	47	80	4.5	2	BE0450Z2C47AS6B080	BE0450Z2C47AS6N080
5	52	86	5	2	BE0500Z2C52AS6B086	BE0500Z2C52AS6N086
5.5	57	93	5.5	2	BE0550Z2C57AS6B093	BE0550Z2C57AS6N093
6	57	93	6	2	BE0600Z2C57AS6B093	BE0600Z2C57AS6N093
6.5	63	101	6.5	2	BE0650Z2C63AS6B101	BE0650Z2C63AS6N101
6.8	63	101	6.8	2	BE0680Z2C63AS6B101	BE0680Z2C63AS6N101
7	69	109	7	2	BE0700Z2C69AS6B109	BE0700Z2C69AS6N109
7.5	69	109	7.5	2	BE0750Z2C69AS6B109	BE0750Z2C69AS6N109
8	75	117	8	2	BE0800Z2C75AS6B117	BE0800Z2C75AS6N117
8.5	75	117	8.5	2	BE0850Z2C75AS6B117	BE0850Z2C75AS6N117
9	81	125	9	2	BE0900Z2C81AS6B125	BE0900Z2C81AS6N125
9.5	81	125	9.5	2	BE0950Z2C81AS6B125	BE0950Z2C81AS6N125
10	87	133	10	2	BE1000Z2C87AS6B133	BE1000Z2C87AS6N133
10.2	87	133	10.2	2	BE1020Z2C87AS6B133	BE1020Z2C87AS6N133
10.5	87	133	10.5	2	BE1050Z2C87AS6B133	BE1050Z2C87AS6N133
11	94	142	11	2	BE1100Z2C94AS6B142	BE1100Z2C94AS6N142
11.5	94	142	11.5	2	BE1150Z2C94AS6B142	BE1150Z2C94AS6N142
12	101	151	12	2	BE1200Z2C10AS6B151	BE1200Z2C10AS6N151
12.5	101	151	12.5	2	BE1250Z2C10AS6B151	BE1250Z2C10AS6N151
13	101	151	13	2	BE1300Z2C10AS6B151	BE1300Z2C10AS6N151
13.5	101	151	13.5	2	BE1350Z2C10AS6B151	BE1350Z2C10AS6N151
14	120	175	14	2	BE1400Z2C20AS6B175	BE1400Z2C20AS6N175
15	120	175	15	2	BE1500Z2C20AS6B175	BE1500Z2C20AS6N175
16	120	175	16	2	BE1600Z2C20AS6B175	BE1600Z2C20AS6N175
18	120	175	18	2	BE1800Z2C20AS6B175	BE1800Z2C20AS6N175
20	120	175	20	2	BE2000Z2C20AS6B175	BE2000Z2C20AS6N175
