End Mills
Solid carbide countersinks
- Diameter range
- Ø 6.3–31 mm
- Sizes
- 9 sizes
- Flutes (Z)
- 3
- Coating
- nACo Multilayer
- Helix angle
- 0°
- Standard
- Toolex drill standard
Images

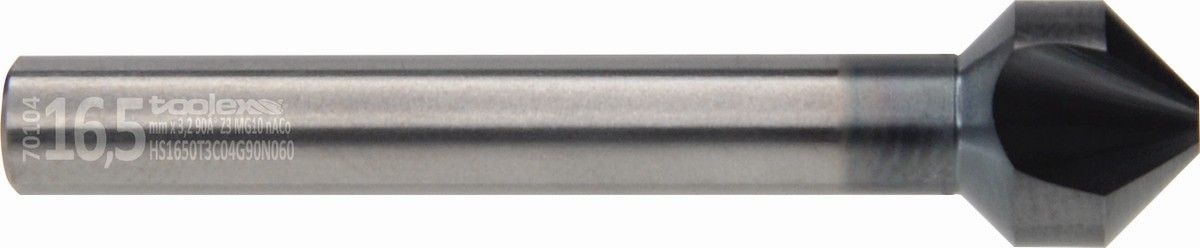

Product images
Click to enlarge
Code key
Specifications
The icons describe the family's reference size in the order of the Toolex article code.
Type
Countersink
Grade
NG-10
Reference diameter
Ø 10.4 mm
Standard
Toolex drill standard

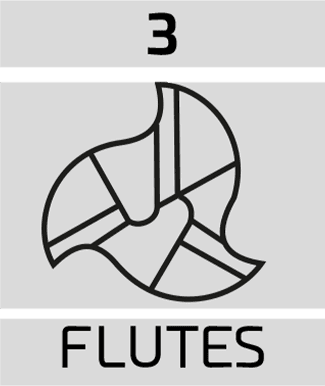

Flutes
3 flutes
Shank type
DIN 6535 HA
Flute length
3 mm
Helix angle
0°
Edge form
Edge angle 90°
Coating
nACo Multilayer
Overall length
50 mm
Sizes
Size table

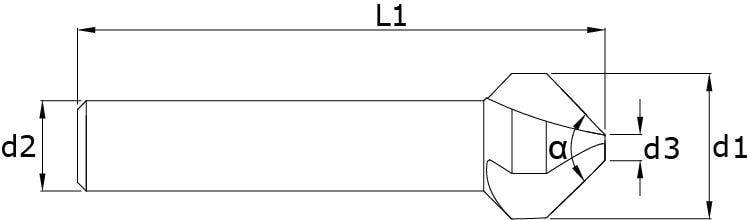

All dimensions in mm; column headings match the symbols on the technical drawing. Add any row to your quote basket by its article code.
Article code for quote
9 sizes
Download Excel| Quote | ||||||||
|---|---|---|---|---|---|---|---|---|
| 6.3 | 90° | 2 | 45 | 5 | 3 | HS0630T3C02G90B045 | HS0630T3C02G90N045 | |
| 8.3 | 90° | 2 | 50 | 6 | 3 | HS0830T3C02G90B050 | HS0830T3C02G90N050 | |
| 10.4 | 90° | 2.5 | 50 | 6 | 3 | HS1040T3C03G90B050 | HS1040T3C03G90N050 | |
| 12.4 | 90° | 2.8 | 56 | 8 | 3 | HS1240T3C03G90B056 | HS1240T3C03G90N056 | |
| 15 | 90° | 3.2 | 60 | 10 | 3 | HS1500T3C04G90B060 | HS1500T3C04G90N060 | |
| 16.5 | 90° | 3.2 | 60 | 10 | 3 | HS1650T3C04G90B060 | HS1650T3C04G90N060 | |
| 20.5 | 90° | 3.5 | 63 | 10 | 3 | HS2050T3C04G90B063 | HS2050T3C04G90N063 | |
| 25 | 90° | 3.8 | 67 | 10 | 3 | HS2500T3C04G90B067 | HS2500T3C04G90N067 | |
| 31 | 90° | 4.2 | 71 | 12 | 3 | HS3100T3C05G90B071 | HS3100T3C05G90N071 |
